| Main Feature | ||
| Type | Gigabit EdgeSmart Switch |
|
| Port | 8 x Gigabit ports |
|
| Network Standard | IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az |
|
| Data Transmission Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) Switch fabric: 16Gbps RAM buffer: 192KB Jumbo Frames: 9KB Forwarding rate: 11.9Mpps (64-byte packet size) |
|
| MAC Address Table | 4K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | LED indicators |
|
| Power Supply | Input: 100 – 240V AC, 50/60Hz, 0.2A Output: 5V DC, 1A external power adapter Max consumption: 4.94W |
|
| Dimensions (L x W x H) | 145 x 82 x 28mm (5.7 x 3.22 x 1.1 in.) |
|
| Weight | 317g (11.18 oz.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Year | |

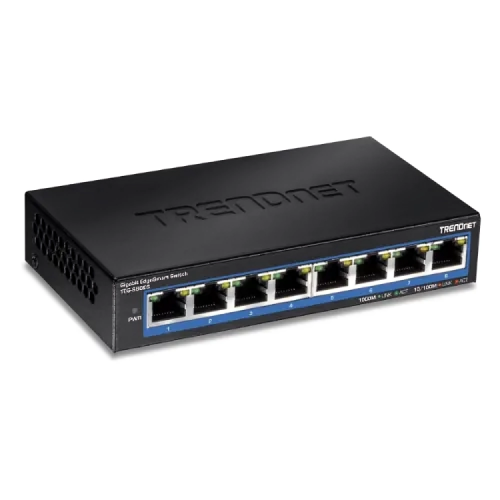

The TRENDnet TEG-S80ES is an 8-port EdgeSmart Gigabit switch optimized for high-performance networking. Its simple web-based interface enables users to setup VLANs, Quality of Service (QoS), IGMP snooping, and static link aggregation for better network traffic. This TRENDnet TEG-S80ES 8-Port Gigabit Switch supports IEEE 802.1p CoS and queue scheduling to provide smooth data priority for important applications. With a 16Gbps switching capacity and full-duplex Gigabit rates of up to 2000Mbps per port, it provides efficient and stable connectivity for home offices, small enterprises, and VoIP applications. It also supports dedicated Voice VLAN. The TRENDnet TEG-S80ES Gigabit Switch is designed for network efficiency, including IEEE 802.1d STP and 802.1w RSTP support for spanning tree protocols, which avoid network loops and improve dependability. It supports static link aggregation for up to two groups, which optimizes bandwidth in high-traffic environments. The TRENDnet TEG-S80ES EdgeSmart Switch provides port-based VLAN, 802.1Q tagged VLAN, and private VLAN, with up to 32 VLAN groups for secure and separated network communication. In addition, IGMP Snooping v1/2/3 with multicast filtering improves performance for streaming and other bandwidth-intensive applications. The TRENDnet TEG-S80ES 8-Port EdgeSmart Gigabit Switch runs quietly and may be wall-mounted for flexible installation. It includes a 4K MAC address table, a 192KB RAM buffer, and can handle jumbo frames up to 9KB for faster data transmission. Storm control and loopback detection reduce network congestion and security risks, while port mirroring enables efficient network monitoring. The TRENDnet TEG-S80ES 8-Port EdgeSmart Gigabit Switch also supports bandwidth control per port, with a minimum rate restriction of 8Kbps for precise traffic management. It supports the 802.3az power-saving mode, which lowers energy usage when network demand is low. Its NDAA and TAA compliance make it appropriate for government and enterprise use.
