Pay cash discounted price and save
EMI available for 12 months on regular price: ৳24,800
| Main Feature | ||
| Type | Gigabit PoE+ Switch |
|
| Port | 16 x Gigabit PoE+ ports |
|
| Network Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at |
|
| Transmission Method | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit: 2000 Mbps (full duplex) |
|
| Data Transmission Rate | Data RAM Buffer: 512KB Switch Fabric: 32Gbps Forwarding rate: 23.8Mpps (64-byte packet size) Jumbo Frame: 10KB |
|
| MAC Address Table | 8K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | Yes | |
| Power Supply | Input: 100 – 240V AC, 50/60Hz, DC 54V/2.78A Max. consumption: 12.8W (no PD) PoE budget: 123W PoE Mode A: Pins 1, 2, 3, and 6 for power |
|
| Dimensions (L x W x H) | 286 x 102 x 27mm (11.3 x 4 x 1 in.) |
|
| Weight | 0.9kg (2 lbs.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Years | |

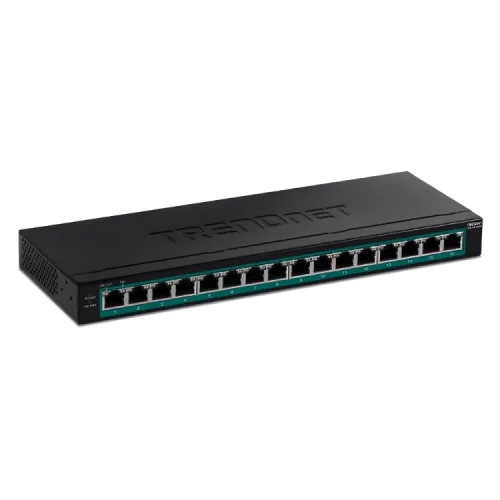

The TRENDnet TPE-TG160H is a high-performance 16-port Gigabit PoE+ switch designed for companies and network professionals who want dependable power and data transmission. It serves bandwidth-intensive applications efficiently, with 16 Gigabit PoE+ ports and a switching capacity of 32Gbps. With a 123W PoE power budget, this TRENDnet Switch powers and connects PoE-enabled devices such as IP cameras, VoIP phones, and access points via existing network cables, lowering infrastructure expenses. The TRENDnet TPE-TG160H 16-Port PoE Switch is completely compliant with the IEEE 802.3af and 802.3at standards, making it compatible with a wide range of PoE devices. Its fanless design reduces noise, making it excellent for noise-sensitive situations such as workplaces and meeting rooms. The TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch is 1U 19" rack-mountable and comes with brackets for a space-saving network expansion option. The external power supply accepts 100-240V AC input and has a DC output of 54V/2.78A, drawing a maximum of 12.8W without powered devices. It has LED indicators for real-time status monitoring, making network visibility and troubleshooting easier. The TRENDnet TPE-TG160H Network Switch supports data transfer rates of 10Mbps (half duplex), 20Mbps (full duplex) for Ethernet, 100Mbps (half duplex), 200Mbps (full duplex) for Fast Ethernet, and 2000Mbps (full duplex) for Gigabit connections, ensuring smooth data transmission for a wide range of network applications. In terms of performance, the TRENDnet TPE-TG160H 16-Port Gigabit Network Switch has a 512KB data RAM buffer, an 8K MAC address database, and a forwarding rate of 23.8Mbps with a 64-byte packet size. The 10KB jumbo frame support improves data transfer efficiency. PoE Mode A powers devices via pins 1, 2, 3, and 6, with built-in overcurrent and short-circuit protection to ensure safety. With a remarkable MTBF of 988,148 hours, it provides long-term reliability. The TRENDnet TPE-TG160H 16-Port Gigabit PoE+ Switch is a reliable networking solution for professional situations that require consistent PoE+ performance. It is CE and FCC certified, as well as NDAA and TAA compliant.
