| General | ||
| Casing | Plastic |
|
| Dimensions | Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17") |
|
| Weight | 0.32 kg (0.71 lb) |
|
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
|
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F);<95% (non-condensation) |
|
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F);<95% (non-condensation) |
|
| Power Supply | 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera) |
|
| Power Consumption | Max 9.37 W (12 VDC, IR on) |
|
| Camera | ||
| Image Sensor | 2 MP CMOS |
|
| Effective Pixels | 2MP |
|
| Scanning System | Progressive |
|
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
|
| Minimum Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on |
|
| S/N Ratio | >65dB |
|
| IR Distance | 40 m (131.23 ft) |
|
| IR LEDs | Dual | |
| IR On/Off Control | Auto; manual |
|
| Video | ||
| Resolution | 1920(H)×1080(V) |
|
| Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
|
| Day/Night | Auto(ICR)/Color/B/W |
|
| BLC Mode | BLC; HLC; WDR; HLC-Pro |
|
| Gain Control | Auto; manual |
|
| Noise Reduction | 3D NR |
|
| Interface | ||
| Audio Interface | Built-in mic (-A) Speaker |
|
| Lens | ||
| Lens Type | Fixed -Focal |
|
| Mount Type | M12 |
|
| Focal Length | 2.8mm; 3.6mm |
|
| Max Aperture | 2.8 mm; 3.6 mm F2.0 |
|
| Angle of View | 2.8 mm: H: 111.3°; V: 60.8°; D: 134.2° 3.6 mm: H: 89°; V: 48.2°; D: 109.1° |
|
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.7 m (2.30 ft) |
|
| Warranty Information | ||
| Warranty | 1 Year | |

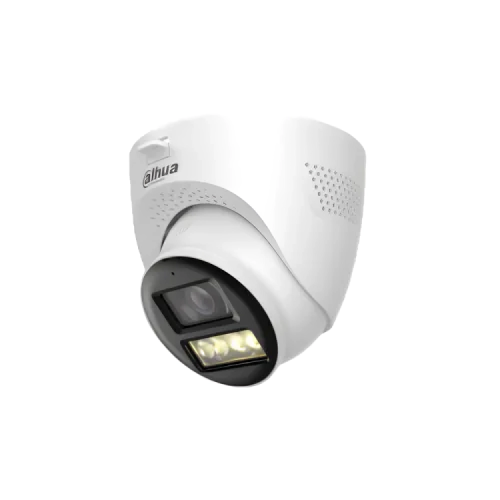

The Dahua HAC-HDW1200TQP-IL-T is a 2MP Dual Light HDCVI Audio Dome Camera designed for professional monitoring. It features a 2MP CMOS sensor delivering 1080p resolution with progressive scanning for smooth video output. With minimum illumination of 0.01 lux, it ensures clear visuals even in low-light conditions. Smart IR and white light modes extend visibility up to 40 meters, providing reliable coverage. The built-in microphone enhances audio capture, making this Microphone CC camera suitable for advanced security needs. The Dahua HAC-HDW1200TQP-IL-T also supports Two way Talk Dome camera functionality, enabling real-time communication. Certified with IP67 protection, it withstands harsh environments, ensuring strong performance in diverse installations.
Enhanced Audio Communication
The Dahua HAC-HDW1200TQP-IL-T integrates a microphone and speaker with an 8-meter pickup range. This CC camera supports two-way audio over CVI and TVI formats, enabling direct communication with monitored areas. Its audio clarity ensures effective interaction, making it suitable for residential, commercial, and industrial applications.
Superior Night Vision Performance
Equipped with advanced illumination technology, the Dahua HAC-HDW1200TQP-IL-T functions as a night vision CC camera. With smart IR and white light modes, it provides clear footage even in complete darkness. The 40-meter illumination distance ensures reliable monitoring across wide areas, enhancing safety during nighttime operations.
Flexible Installation and Design
The Dahua HAC-HDW1200TQP-IL-T offers multiple mounting options including wall, ceiling, and pole installations. Its dome casing combines metal and plastic for durability while maintaining a compact design. With angle adjustments up to 360° pan and rotation, it ensures optimal coverage. This model balances performance and adaptability, making it a strong surveillance solution for diverse environments.
