| General | ||
| Casing | Inner core: metal+plastic; cover: plastic;pedestal: plastic |
|
| Dimensions | 97mm×85.8mm |
|
| Weight | 0.22Kg |
|
| Operating Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
|
| Storage Conditions | -40°C to +60°C (-40°F to 140°F);<95% (non-condensation) |
|
| Power Supply | 12V ±30% DC |
|
| Power Consumption | Max 3W (12V DC, white light on) |
|
| Camera | ||
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS |
|
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
|
| Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
|
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on |
|
| IR Distance | 20 m |
|
| Video | ||
| Resolution | 1920×1080 |
|
| Frame Rate | Max. 30fps@1080P |
|
| Video Output | CVI/TVI/AHD/CVBS by one BNC |
|
| Gain Control | Auto; Manual |
|
| Noise Reduction | 2D NR |
|
| Lens | ||
| Lens Type | Fixed-focal |
|
| Mount Type | M12 |
|
| Focal Length | 2.8m |
|
| Max Aperture | F1.6 |
|
| Angle of View | 2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical) 3.6mm: 103.6°x86.9°x46.3°(diagonalxhorizontalxvertical) |
|
| Close Focus Distance | 2.8mm: 0.6m (1.97ft) 3.6mm: 1.2m (3.94ft) |
|
| Warranty Information | ||
| Warranty | 1 year |
|
| Special Features | ||
| Features | BLC : BLC/HLC/WDR WDR DWDR White Balance : Auto; Manual Gain Control : Auto; Manual Noise Reduction : 2D NR Smart Light : Yes Electronic Defog : Yes |
|

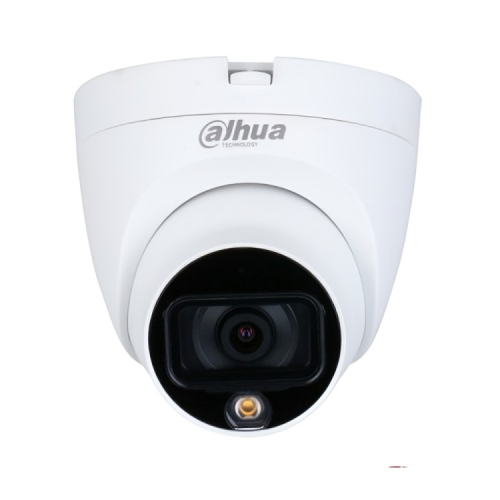

Dahua DH-HAC-HDW1209TLQP-A-LED is a 2M full-Color enabled HDCVI Dome Camera Ideal for regular usage. It is featured as a full-colored starlight camera with 20 M illumination distance.Experience 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots. It supports a maximum of 30fps at 1080P alongside it's CVI/CVBS/AHD/TVI switchablity. With a Fixed lens of 2.8 mm it also supports a 3.6 mm optional lens. This camera is IP67 water and dust resistant. The output capacity is 12V+-30% DC. It has a Progressive scanning System alongside a Minimum Illumination of 0.01Lux/F1.6, 0 Lux (white light on) with Illuminator On/Off Control available in Auto and manual, Illuminator. the featured Lens Type is Fixed-focal with a maximum Aperture of F1.6. The Close Focus Distance is 0.6 m and DORI Distance is 38.6 m (Detect), 15.4 m (Observe), 7.7 m (Recognize), 3.9 m (Identify). The White Balance and Gain Control is available in Auto and manual. The BLC/WDR camera has a smart Light with a switchable Mirror. the Privacy Masking has dual mode and the Off/On readings are 8 area, rectangle. the Operating Temperature range is from -40 degree C to - 60 degree C & The Storage Temperature reading is -40 degree C to 60 degree C. This camera has a Certifications of CE, FCC.Dahua DH-HAC-HDW1209TLQP-A-LED 2M Color HDCVI Dome Camera offers 1 year of Warranty.
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.
The Dahua DH-HAC-HDW1209TLQP-A-LED/HAC-HDW1209CLQP-A-LED 2M Color HDCVI Dome Camera is expected soon at Computer Vision BD, and its price is yet to be announced, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
