| Primary Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 |
|
| BIOS | 128M UEFI, supporting multiple languages |
|
| Form Factor | ITX 170mm x 170mm |
|
| Audio | 5.1 Channel sound card |
|
| Expansion Slots | ||
| PCI | 1 PCIe 5.0 x16 slot | |
| Memory | ||
| Type | DDR4 |
|
| Slots | 2 | |
| Supported Memory | - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 64 GB of memory (a single socket can support up to 32 GB of memory) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| LAN Port (s) | RTL8125 2.5Gbit network card |
|
| Wireless Communication module | AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
|
| Supported Storage | A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | See the official BIOS user guide of Colorful for the steps to create a RAID disk array |
|
| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 Wi-Fi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface: - 1 CPU fan pin - 1 system fan pin - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 1 5V 3-pin ARGB pin - 1 front audio pin - 1 front panel pin - 1 speaker pin |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

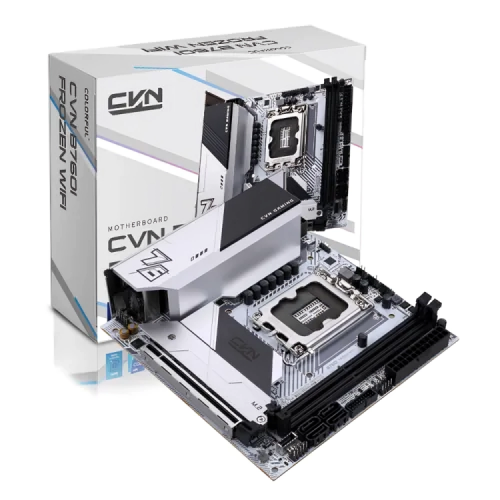

The Colorful CVN B760I FROZEN WIFI V20 Motherboard is a dynamic and high-performance solution designed for both enthusiasts and gamers. This motherboard, notable for its Colorful CVN series tailored frost cooling armor, has complete coverage condensing fins, increasing heat dissipation to provide maximum performance throughout demanding jobs and intensive gaming sessions. With two PCIe 4.0 x4 M.2 SSD slots, customers may experience lightning-fast data transfer speeds and accommodate high-speed storage options. One USB 3.2 Gen 1 Type-C and two USB 3.2 Gen 1 Type-A high-speed back connectors allow quick data transfers and diverse peripheral connections. This motherboard is well-equipped for networking, with a Realtek 2.5G high-speed wired network card and an AX201/AX200 WiFi 6 wireless network card that supports Bluetooth 5.2 for smooth communication. The iGame Center light efficiency control program, which is included, allows users to tailor their setup by simultaneously modifying the lighting of the radiator, cooling fan, and memory for a visually appealing gaming experience. Stability is prioritized, with six protective mechanisms contributing to dependable product functioning and hardware protection. The CVN B760I WIFI V20 Motherboard is subjected to a thorough testing procedure encompassing 200 demanding tests, providing guaranteed quality and satisfying high-performance criteria. The PCB atomization process is a thorough update that improves overall durability and efficiency. This motherboard combines cutting-edge features, bright aesthetics, and powerful performance, making it a fantastic choice for customers looking for a high-quality, visually appealing basis for their PC build.
