Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,445
| Primary Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium ® And Cylon processor | |
| Chipset | Intel B760 |
|
| BIOS | 128M UEFI, supporting multiple languages |
|
| Form Factor | M-ATX 245mm x 245mm |
|
| Audio | 5.1 Channel sound card |
|
| Expansion Slots | ||
| PCI | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 128 GB of memory (a single socket can support up to 32 GB of memory) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 1x DisplayPort |
|
| LAN Port (s) | RTL8125 2.5Gbit network card |
|
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Internal I/O Ports | Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) On board device interface: - 1×CPU fan pin - 3 system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pin - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB lamp effect control jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

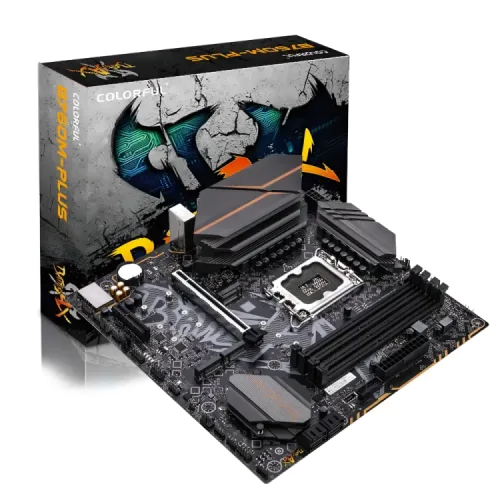

The colorful BATTLE-AX B760M-PLUS V20 Motherboard is a high-performance motherboard that elevates your gaming and computer experience. This motherboard is packed with cutting-edge features and remarkable characteristics, and it is intended to fulfill the needs of current PC enthusiasts and gamers. The BATTLE-AX B760M-PLUS V20 motherboard has a powerful 12+1 phase reinforced power supply, guaranteeing steady and efficient power delivery to your components. This design is suited for overclocking and demanding applications. This motherboard includes three PCIe 4.0 x4 M.2 SSD slots, letting you make full use of high-speed NVMe storage devices for lightning-fast data access and speedy load times in your games and applications. The motherboard has one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A high-speed back connectors. These interfaces offer lightning-fast data transmission rates and good interoperability with a wide range of peripherals. This motherboard's Realtek 2.5G high-speed wired network card offers seamless and lag-free online gaming and multimedia streaming. You will have minimal latency and high-speed internet access. The CNVI WiFi/BT slot supports an extended WiFi module, allowing you to connect wirelessly and enjoy the convenience of Bluetooth connectivity. The iGame Center light efficiency control software is compatible with the BATTLE-AX B760M-PLUS V20 motherboard. This program allows you to synchronize and personalize the lighting effects of the radiator, cooling fan, and memory, giving your system a personal touch. Safety and stability are critical, and this motherboard has six safety technologies to provide dependable and uninterrupted performance, protecting your components from harm. Each BATTLE-AX B760M-PLUS V20 motherboard is subjected to a rigorous quality control process before reaching your hands. Colorful ensures the finest quality product through 200 rigorous testing methods. The PCB atomization process has been significantly improved, increasing the motherboard's longevity and performance. It aids in increased longevity and heat dissipation.
