| Primary Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 |
|
| BIOS | 128M UEFI, supporting multiple languages |
|
| Form Factor | M-ATX 245mm x 245mm |
|
| Audio | 5.1 Channel sound card |
|
| Expansion Slots | ||
| PCI | 1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 192 GB of memory (a single socket can support up to 48 GB of memory) |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x DisplayPort | |
| LAN Port (s) | RTL8125 2.5Gbit network card |
|
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices |
|
| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

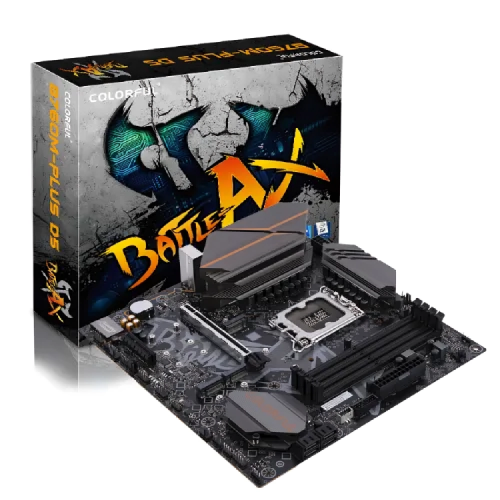

The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is a high-performance motherboard ideal for gamers. This motherboard supports 14th/13th/12th Gen Intel Processors (LGA1700) and has 4x DDR5 RAM slots with a maximum capacity of 192GB 6800(OC). With 1x HDMI and 1x DisplayPort, you may experience excellent visuals output. The motherboard also has an RTL8125 2.5Gbit network card for fast and dependable internet access. The BATTLE-AX series' specialized heat dissipation armor and 12+1+1 phase reinforced power supply assure efficient cooling and consistent power delivery. It has three PCIe 4.0 x4 M slots.2 SSD slots, one USB 3.2 Gen 2 Type-C port, and one USB 3.2 Gen 1 Type-A portA high-speed back interface allows for smooth data transfer. This motherboard provides a variety of networking choices thanks to its Realtek 2.5G high-speed wired network card and CNVI WiFi/BT socket. You may tune the lighting effects of the radiator, cooling fan, and RAM with support for the iGame Center light efficiency control software. The motherboard also has six protective technologies for increased stability and has been rigorously tested to assure high quality. The colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard will enhance your gaming experience.
