Pay cash discounted price and save
EMI available for 12 months on regular price: ৳7,900
| Basic Information | ||
| Supported CPU | Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors Support for future AMD Ryzen processors with BIOS update |
|
| Primary Information | ||
| Audio | ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000/3000 Processors 1 x PCIe 3.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Processors 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot * According to different CPUs will have different speeds. |
|
| Memory | ||
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module |
|
| Connector & Ports | ||
| USB (s) | 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
|
| Supported Storage | Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports AMD A520 Chipset 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) - NVMe SSD Supports SATA III (6.0Gb/s) SSD |
|
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

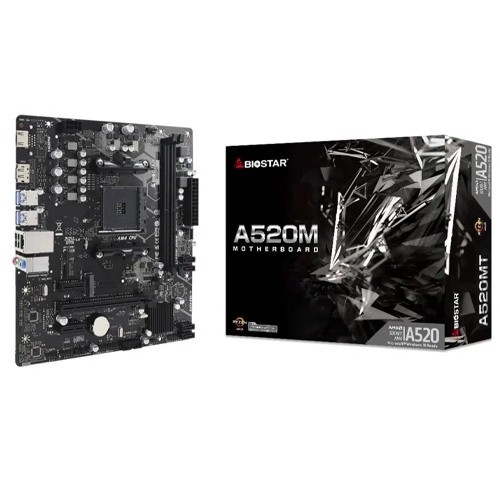

The Biostar A520MS AMD Ryzen mATX Motherboard is a feature-packed solution for your computing needs, offering support for a wide range of AMD Ryzen processors and boasting a multitude of connectivity options. Designed to accommodate both 3rd and 4th Gen AMD Ryzen processors, including Matisse, Renoir, Vermeer, and Cezanne CPUs, this motherboard ensures compatibility with the latest and future AMD offerings through BIOS updates, providing you with the flexibility to upgrade your system as needed. With support for up to 64 GB of DDR4 memory across two DIMM slots, the A520MS allows for smooth multitasking and efficient data processing, whether you're gaming, streaming, or working on creative projects. Storage options are plentiful, with one M.2 socket and four SATA III ports, enabling you to connect high-speed NVMe SSDs and traditional HDDs or SSDs for ample storage capacity and fast data transfer rates. Connectivity is a breeze with the Realtek RTL8111H LAN port delivering reliable Gigabit Ethernet speeds, while the ALC897 audio codec ensures immersive 7.1 channel HD audio for an enhanced gaming and multimedia experience. The rear I/O panel features a comprehensive array of ports, including DisplayPort and HDMI outputs for connecting to external displays, USB 3.2 and USB 2.0 ports for peripherals, and audio jacks for headphones and microphones. Expansion slots include a PCIe 3.0 x16 slot for graphics cards, with varying configurations depending on the CPU installed, as well as two PCIe 3.0 x1 slots for additional add-in cards. Internal headers cater to various connectivity needs, including SATA, USB, fan connectors, power connectors, and more, ensuring easy integration of peripherals and accessories. With comprehensive hardware monitoring capabilities, including temperature and fan speed monitoring, as well as smart fan control options, you can keep tabs on your system's health and performance. Backed by a 1-year warranty and bundled with accessories such as SATA cables, an I/O shield, DVD driver, and quick guide, the Biostar A520MS offers a reliable and versatile foundation for your next PC build or upgrade.
CPU Support: Compatible with Socket AM4, the motherboard supports a wide range of AMD Ryzen processors, including 3rd and 4th Gen Ryzen CPUs and APUs, ensuring compatibility with both current and future AMD offerings.
Memory Support: With two DDR4 DIMM memory slots supporting up to 64 GB of RAM, the motherboard offers extensive memory compatibility, enabling high-speed data processing and multitasking capabilities.
Integrated Video: The motherboard supports integrated video output via CPU model, with compatibility for DirectX 12 and HDCP, providing crisp visuals and smooth graphics performance.
Storage Options: Featuring one M.2 socket and four SATA III ports, the motherboard offers ample storage connectivity, supporting high-speed NVMe SSDs and traditional SATA III SSDs or HDDs for fast data access and storage capacity.
LAN and Audio: Equipped with a Realtek RTL8111H LAN port and ALC897 audio codec, the motherboard delivers reliable Gigabit Ethernet connectivity and immersive 7.1 channel HD audio, enhancing your gaming and multimedia experience.
USB Connectivity: With six USB 3.2 (Gen1) ports and six USB 2.0 ports, including both rear I/O and internal headers, the motherboard provides extensive USB connectivity for peripherals, accessories, and high-speed data transfer.
Expansion Slots: The motherboard features one PCIe 3.0 x16 slot for graphics cards and two PCIe 3.0 x1 slots for additional expansion cards, catering to various upgrade and expansion needs.
H/W Monitoring: Offering comprehensive hardware monitoring capabilities, including CPU and system temperature monitoring, fan speed monitoring, and CPU/DDR voltage monitoring, the motherboard ensures optimal system performance and stability.
Form Factor and Dimensions: Designed in a Micro ATX form factor with dimensions of 20.8cm x 23.5cm (W x L), the motherboard offers a compact yet feature-packed solution for smaller PC builds.
Operating System Support: Compatible with Windows 10 (64-bit) and Windows 11 (64-bit), the motherboard provides broad OS support for a seamless computing experience.
Backed by a 1-year warranty and bundled with essential accessories such as SATA cables, an I/O shield, DVD driver, quick guide, and M.2 anchor, the Biostar A520MS motherboard offers reliability, performance, and versatility for your computing needs.
