| Basic Information | ||
| Supported CPU | Support AMD Ryzen 5000/5000G/4000G/3000/3000G series Processors Support for future AMD Ryzen processors with BIOS update * Please refer to www.biostar.com.tw for CPU support list. |
|
| Primary Information | ||
| Chipset | AMD A520 |
|
| Audio | Realtek ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
|
| Memory | ||
| Supported Memory | 4th Gen AMD Ryzen Processors (Vermeer CPUs): Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133 4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list. |
|
| Connector & Ports | ||
| USB (s) | 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers) |
|
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
|
| Supported Storage | Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports AMD Ryzen 5000/5000G/4000G/3000/3000G Processors 1 x M.2 (M Key) Socket: Supports M.2 Type 2260/ 2280 SSD module Supports PCIe 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD Supports SATA III (6.0Gb/s) SSD AMD A520 Chipset 4 x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10 * Specifications vary by CPU types |
|
| Internal I/O Ports | 1 x PS/2 Keyboard/ Mouse 1 x VGA Port 1 x HDMI Port 1 x LAN port 2 x USB 3.2 (Gen1) Port 4 x USB 2.0 Port 3 x Audio Jack |
|
| Warranty Information | ||
| Manufacturing Warranty | 3years | |

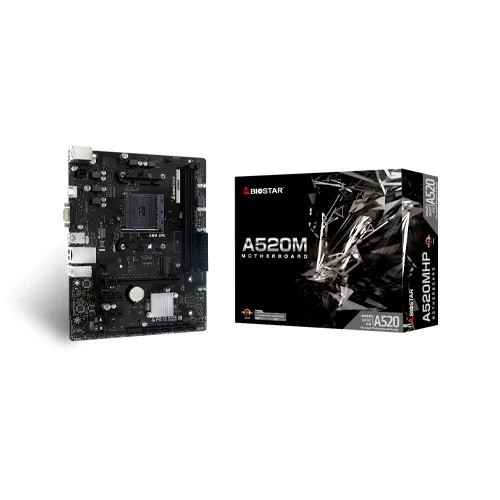

BIOSTAR A520MHP V 6.0 AM4 DDR4 Motherboard is a versatile and reliable solution for building a powerful yet compact PC. Designed with the AMD A520 chipset, it supports the latest AMD Ryzen 5000, 4000G, and 3000 series processors, delivering exceptional performance for gaming, multitasking, and professional workloads. With support for future AMD Ryzen processors via BIOS updates, this motherboard offers a future-proof investment for PC enthusiasts.Featuring dual-channel DDR4 memory support, the motherboard accommodates up to 64GB of RAM, providing high-speed performance for demanding applications. The integrated M.2 slot ensures faster boot times and application loading speeds, supporting both PCIe 3.0 x4 NVMe SSDs and SATA III SSDs. Additionally, four SATA III ports offer flexible storage options with RAID 0, 1, and 10 support.The BIOSTAR A520MHP excels in connectivity and expandability. It includes one PCIe 3.0 x16 slot for dedicated graphics cards and two PCIe 3.0 x1 slots for additional expansion cards. The rear I/O panel features an array of ports, including USB 3.2 Gen1, USB 2.0, HDMI, and VGA, ensuring compatibility with modern and legacy peripherals. The Realtek RTL8111H LAN chipset delivers reliable networking performance, while the Realtek ALC897 audio codec provides immersive 7.1-channel HD sound.Designed in a compact Micro-ATX form factor, this motherboard fits easily into smaller cases, making it ideal for space-conscious builds. The robust build quality, along with essential features like fan headers, power connectors, and front panel headers, ensures easy installation and stable operation.Whether you're building a gaming rig, a home office PC, or a multimedia center, the BIOSTAR A520MHP V 6.0 AM4 DDR4 Motherboard delivers performance, reliability, and flexibility at an excellent value.
Processor Support: Compatible with AMD Ryzen 5000, 4000G, and 3000 series processors.
Memory Support: Dual-channel DDR4 memory up to 64GB with speeds up to 4400+ MHz (OC).
Storage Options: One M.2 socket for PCIe 3.0 NVMe SSDs and four SATA III ports with RAID 0, 1, and 10 support.
Graphics: Integrated video output via VGA and HDMI, depending on the CPU model.
Connectivity: USB 3.2 Gen1, USB 2.0, and Realtek Gigabit LAN for high-speed data transfers and stable networking.
Expansion Slots: Includes PCIe 3.0 x16 and PCIe 3.0 x1 slots for additional hardware upgrades.
Form Factor: Compact Micro-ATX design ideal for space-saving builds.
Audio: Realtek ALC897 codec for 7.1-channel HD audio with Hi-Fi front output.
Operating System: Supports Windows 10 and 11 (64-bit).
Accessories: Includes SATA cables, I/O shield, driver DVD, and a quick guide for easy setup.
