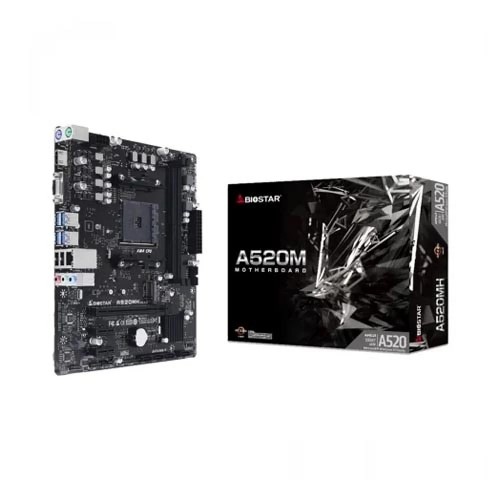

Biostar A520MH DDR4 AMD AM4 Socket Motherboard

Description

Biostar A520MH DDR4 AMD AM4 Socket Motherboard

The Biostar A520MH DDR4 AMD AM4 Socket Motherboardis a reliable and efficient motherboard designed for home users and media aficionados. This motherboard supports 3rd and 4th-generation processors and is equipped with the AMD A520 chipset, providing a stable platform with a range of connectivity and bandwidth options. With dual memory channels, this motherboard can support up to 64GB of DDR4 memory at a maximum speed of 4933+ MHz (OC).

The Biostar A520MH DDR4 AMD AM4 Socket Motherboard features a PCIe 3.0 x 16 slot and two PCIe 3.0 x 1 slots for expansion, as well as a single M.2/SSD expansion slot for high-speed storage. This motherboard also comes equipped with four SATA III 6Gbps ports, providing ample bandwidth to retrieve and transfer HD media. Additionally, this motherboard supports RAID 0, 1, and 10 configurations.

The Biostar A520MH DDR4 AMD AM4 Socket Motherboard provides high-quality sound with minimal loss of audio fidelity thanks to its ALC887 audio chipset and 7.1 audio channel support. The motherboard also features a VGA port and an HDMI port for high-definition image display with 4K2K resolution, which is four times the resolution of full HD. This makes it ideal for media enthusiasts and those who enjoy high-quality visuals.

This Micro-ATX form factor motherboard features a Realtek RTL8111H LAN chipset and LAN speeds of 10/100/1000 Mb/s. It also features six USB 3.2 Gen 1 and six USB 2.0 ports for easy connectivity to external devices. The motherboard includes a PS/2 keyboard and mouse port, three audio jacks, an 8-pin power connector, a 24-pin power connector, a CPU fan connector, a system fan connector, a front panel header, a front audio header, a clear CMOS header, and an internal stereo speaker header.

Overall, the Biostar A520MH DDR4 AMD AM4 Socket Motherboard is an excellent choice for those looking for a stable and efficient motherboard with a range of connectivity and expansion options, high-quality audio and visuals, and reliable performance. This motherboard is backed by a 3-year warranty, ensuring peace of mind for the user.

Features

Here are some features of the Biostar A520MH DDR4 AMD AM4 Socket Motherboard:

AM4 Socket Support: The motherboard supports the AM4 socket, which is compatible with 3rd-Gen and 4th-Gen AMD processors.

AMD A520 Chipset: The motherboard is equipped with the AMD A520 chipset, providing a stable platform with sufficient connectivity and bandwidth options for demanding home users and media enthusiasts.

Dual DDR4 Memory Support: The motherboard supports dual-channel DDR4 memory with a maximum capacity of up to 64GB, and a wide range of memory frequencies ranging from 2133MHz to 4933+(OC) MHz.

PCIe 3.0 x 16 Slot: The motherboard features a PCIe 3.0 x 16 slot, enabling users to install high-performance graphics cards and other PCIe devices.

SATA III 6Gbps Support: The motherboard supports SATA III 6Gbps, providing higher bandwidth to retrieve and transfer HD media.

Realtek RTL8111H LAN Chipset: The motherboard features a Realtek RTL8111H LAN chipset, providing a LAN speed of up to 10/100/1000 Mb/s.

7.1 Channel High-Definition Audio: The motherboard is equipped with the ALC887 audio chipset, providing high-quality sound with minimal loss of audio fidelity.

M.2/SSD Expansion Slot: The motherboard features an M.2/SSD expansion slot, enabling users to install high-speed storage devices.

6 USB 3.2 Gen 1 and 6 USB 2.0 Ports: The motherboard features a total of 12 USB ports, including 6 USB 3.2 Gen 1 and 6 USB 2.0 ports, enabling users to connect multiple devices.

Micro-ATX Form Factor: The motherboard is designed with a Micro-ATX form factor, providing a compact and versatile platform for various applications.

3-Year Warranty: The motherboard comes with a 3-year warranty, providing users with peace of mind and protection against defects and malfunctions.
