Pay cash discounted price and save
EMI available for 12 months on regular price: ৳37,950
| Primary Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
|
| Chipset | AMD B850 Chipset |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode) |
|
| M.2 Socket | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types. |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 x DIMM |
|
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB |
|
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| USB (s) | Rear USB (Total 8 ports) 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
|
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types. |
|
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
| Audio | - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
|
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
|
| Others Features | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

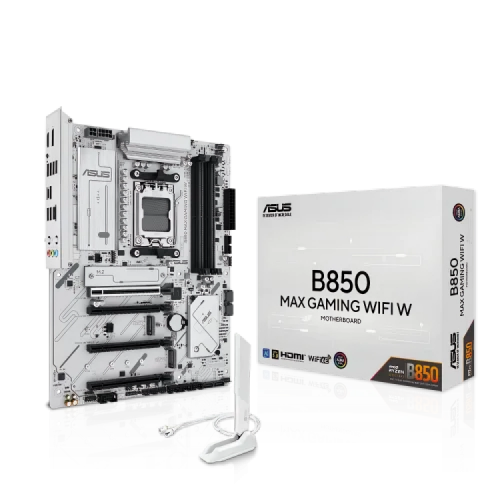

The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard is a performance-driven solution designed for gamers and power users who demand cutting-edge features and next-gen compatibility. Built on the powerful AMD B850 chipset, this ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors through the latest AM5 socket, making it a future-proof investment. The Asus B850 MAX GAMING WIFI W ATX Motherboard supports up to 256GB DDR5 RAM across four DIMM slots, delivering exceptional memory speeds up to 8000+ MT/s (OC) and full support for ECC and non-ECC unbuffered memory, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles. Designed for high-performance expansion, the Asus B850 MAX GAMING WIFI W Motherboard includes PCIe 5.0 and PCIe 4.0 slots, and three ultra-fast M.2 slots, alongside four SATA 6Gb/s ports with full RAID support. For superior graphics, it offers HDMI 2.1 and dual USB4 Type-C ports, capable of supporting 4K@60Hz output, ideal for immersive visual experiences. Connectivity is top-tier with Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2, ensuring fast and reliable networking. The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard also excels in audio with Realtek 7.1 Surround Sound High Definition Audio CODEC, jack-detection, and premium audio components for high-fidelity playback up to 24-bit/192 kHz. The rear I/O panel provides 10 USB ports, including 2 USB4 (40Gbps) and fast-charging USB Type-C options, while the internal I/O offers additional fan headers, RGB headers, USB headers, and TPM support. Designed for effortless DIY builds, it features ASUS Q-Design, pre-mounted I/O shield, BIOS FlashBack, and robust thermal solutions like VRM and M.2 heatsinks. Integrated with ASUS Armoury Crate, Aura Sync, and multiple software utilities, the Asus B850 MAX GAMING WIFI W delivers a complete package of performance, reliability, and aesthetics, making it a top choice for gamers and content creators building with the AM5 platform.
