| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 1x M.2 | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel Core i9/ Core i7 CPU Supports 1R 2133/ 2666 MHz for Intel Core i5/ Core i3/ Pentium Gold and Celeron CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x TPM pin header(Support TPM 2.0) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port (s) | 1x VGA | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| LAN Port (s) | Realtek 8111H Gigabit LAN | |
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Features | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years Warranty | |

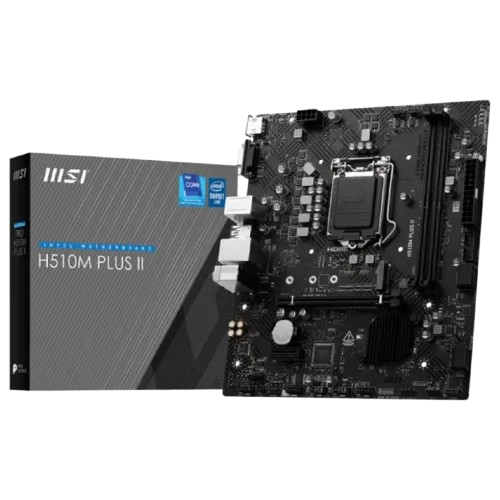

The MSI H510M PLUS II Motherboard is a dependable and cost-effective alternative for building a compact yet powerful desktop computer, providing the key capabilities required for smooth gaming, productivity, and everyday use. It is powered by the Intel H510 chipset and supports 10th and 11th-generation Intel Core processors, as well as Pentium Gold and Celeron CPUs, allowing consumers flexibility across various system designs. Memory compatibility includes two DDR4 slots with dual-channel capabilities, allowing for a maximum capacity of 64GB. Depending on the CPU installed, the MSI H510M PLUS II Motherboard supports speeds of up to 2933MHz for Intel Core i9 and Core i7 processors and up to 2666MHz for Core i5, Core i3, Pentium Gold, and Celeron CPUs, with Intel Extreme Memory Profile (XMP) support for easy overclocking. Onboard graphics include HDMI 1.4, which supports 4K resolution at 30Hz, and a VGA output with resolutions up to 2048x1536, though availability varies depending on the CPU used. For expansion, the board has one PCIe 3.0 x16 slot for a dedicated graphics card and one PCIe 3.0 x1 slot for other devices. Storage is handled by a fast M.2 slot that supports PCIe 3.0 x4 and SATA modes, as well as four SATA 6Gb/s connectors. The MSI H510M PLUS II Motherboard supports both SSDs and traditional hard drives. The audio system uses the Realtek ALC897 codec to provide 7.1-channel high-definition sound, which improves entertainment and gaming experiences. Connectivity is practical, with four USB 2.0 connections on the back and four on the front, as well as two USB 3.2 Gen1 Type-A connectors on both the front and back for fast transfers. MSI H510M PLUS II Motherboard's networking is powered by Realtek 8111H Gigabit LAN for reliable wired connectivity. Additional internal I/O includes CPU and system fan headers, RGB lighting, chassis intrusion detection, COM port, TPM 2.0, and front audio. EZ Debug LEDs are a useful feature that makes troubleshooting easier. The MSI H510M PLUS II, with a tiny micro-ATX form factor of 202mm x 236mm, is compatible with Windows 10 and Windows 11, making it a reliable motherboard that balances performance, expandability, and value for budget-conscious consumers.
