Pay cash discounted price and save
EMI available for 12 months on regular price: ৳48,950
| Primary Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
|
| Chipset | AMD X870 Chipset |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOSc |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode) |
|
| M.2 Socket | MD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1 x HDMI port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. *** VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| USB (s) | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/PPS Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
|
| Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * 2 x USB4 (40Gbps) ports share bandwidth with M.2_2 slot. M.2_2 slot will be disabled when either of the two USB4 (40Gbps) ports is running. You can enter the BIOS to adjust the default Settings as required. * PCIEX16(G3) slot shares bandwidth with SATA6G_3 and SATA6G_4 ports. Both SATA ports will be disabled when PCIEX16(G3) slot is running. You can enter the BIOS to adjust the default Settings as required. ** Specifications vary by CPU types. |
|
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz |
|
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
|
| Others Features | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

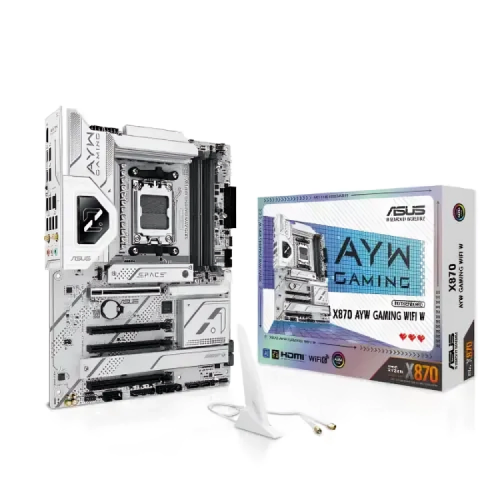

The Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard is a powerhouse platform engineered for high-end gaming and content creation. Built on the latest AMD X870 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors via the AM5 socket, delivering top-tier performance and future-ready features. This Asus X870 AYW GAMING WIFI W Motherboard supports up to 256GB of DDR5 RAM across four DIMM slots, with overclocking capabilities reaching 8000+ MT/s, along with ECC/Non-ECC support, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles for enhanced memory tuning. For graphics, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard provides an HDMI 2.1 port and two USB4 Type-C ports supporting up to 4K@60Hz output, depending on CPU specifications. Expansion options include a PCIe 5.0 x16 slot for Ryzen 9000/7000 CPUs, additional PCIe 4.0 and 3.0 slots, and three M.2 slots (PCIe 5.0 & 4.0), along with four SATA 6Gb/s ports. RAID configurations are supported via AMD RAIDXpert2, including RAID 0/1/5/10 for Ryzen 9000 processors. This Asus X870 AYW GAMING WIFI W motherboard offers comprehensive connectivity, including 2 x USB4 (40Gbps), 10 rear USB ports, 7 front USB ports (with a USB 20Gbps Type-C supporting 30W PD fast-charging), and Realtek 2.5Gb Ethernet. Wireless features include Wi-Fi 6 with 2.4/5GHz support and Bluetooth 5.2. Audiophiles will appreciate the premium Realtek 7.1 Surround Sound High Definition Audio CODEC, which supports 24-bit/192kHz playback, audio shielding, and premium capacitors. Internally, the Asus X870 AYW GAMING WIFI W AM5 ATX Motherboard features multiple fan headers, addressable RGB Gen 2 headers, SPI TPM, S/PDIF out, and front audio connectors. ASUS-exclusive features like Q-Design (M.2 Q-Latch, PCIe Q-Release, Q-LEDs), 5X Protection III (DIGI+ VRM, SafeSlot, LANGuard), and pre-mounted I/O shield enhance durability and ease of installation. The motherboard supports advanced cooling via VRM and M.2 heatsinks, while Fan Xpert 4 offers AI-powered thermal control. With Aura Sync RGB, BIOS Flashback, and bundled software like Armoury Crate, Aura Creator, ASUS DriverHub, and more, the Asus X870 AYW GAMING WIFI W Motherboard is the ultimate choice for gamers and PC enthusiasts seeking performance, reliability, and customization.
