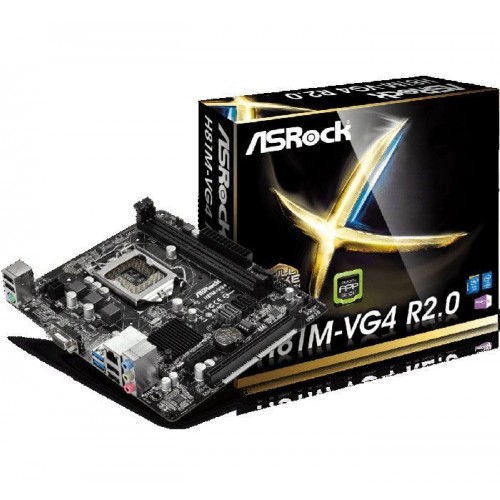

ASRock H81M-VG4 R3.0 Price in Bangladesh

Asrock H81M-VG4 R2.0 Intel H81 Chipset motherboard

Brand: ASRock

Status: Out Of Stock

SKU: 337647

Out Of Stock

Main Features

Celeron® Processors (Socket 1150).
Supports Intel® Turbo Boost 2.0 Technology.
Chipset: Intel® H81.
Micro ATX Form Factor.
M.2 Socket: No

Payment Methods

৳0

Pay cash discounted price and save

Out of Stock

Description

Asrock H81M-VG4 R2.0 Intel H81 Chipset motherboard

Basic Information

Supported CPU

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / .
Celeron® Processors (Socket 1150).
Supports Intel® Turbo Boost 2.0 Technology.
Chipset: Intel® H81.

BIOS

32Mb AMI UEFI Legal BIOS with multilingual GUI support.
ACPI 1.1 Compliant wakes up events.
SMBIOS 2.3.1 support.
CPU, DRAM Voltage multi-adjustment.

Form Factor

Micro ATX Form Factor.
Solid Capacitor for CPU power.

Expansion Slots

PCI

1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode).
1 x PCI Express 2.0 x1 Slot.
M.2 Socket: No.

Memory

Type: Dual Channel DDR3/DDR3L Memory Technology.
Slots: 2 x DDR3/DDR3L DIMM Slots.

Supported Memory

Supports: DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory.
Supports: Intel® Extreme Memory Profile (XMP) 1.3 / 1.2.
Maximum Memory: 16GB.

Graphics

Graphics: Supports D-Sub with max. Resolution up to 1920x1200 @ 60Hz.
Max Shared Memory: 1024MB.

Connector & Ports

USB (s): 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).

LAN Port (s)

PCIE x1 Gigabit LAN 10/100/1000 Mb/s.
Realtek RTL8111C.
Supports Wake-On-LAN.
Supports Lightning/ESD Protection (ASRock Full Spike Protection).
Supports LAN Cable Detection.
Supports PXE.

Supported Storage

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug.
2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI, and Hot Plug.

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)*.
Supports Surge Protection (ASRock Full Spike Protection).

Internal I/O Ports

1 x Chassis Intrusion Header.
1 x TPM Header.
1 x CPU Fan Connector (4-pin).
1 x Chassis Fan Connector (4-pin).
1 x 24 pin ATX Power Connector.
1 x 4 pin 12V Power Connector.
1 x Front Panel Audio Connector.
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).
D-Sub (s): 1 x D-Sub Port.

Warranty Information

Manufacturing Warranty: 03 years.
