Pay cash discounted price and save
| Primary Information | ||
| Supported CPU | - AMD AM4 Socket - Digi Power design - Supports CPU up to 105W |
|
| Chipset | - AMD Promontory B450 |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support |
|
| Form Factor | - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm |
|
| Expansion Slots | ||
| PCI | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot |
|
| M.2 Socket | - 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)* |
|
| Memory | ||
| Type | - Dual Channel DDR4 Memory Technology |
|
| Slots | - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots |
|
| Supported Memory | For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. |
|
| Graphics | ||
| Max Shared Memory | - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed. |
|
| Connector & Ports | ||
| HDMI | - 1 x HDMI Port | |
| USB (s) | - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps |
|
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x TPM Header |
|
| D-Sub (s) | - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - 1 x D-Sub Port |
|
| DVI-D (s) | - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - 1 x DVI-D Port |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years warranty |
|
The main component of the Motherboard
Special Features of this Motherboard That must be considered
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.

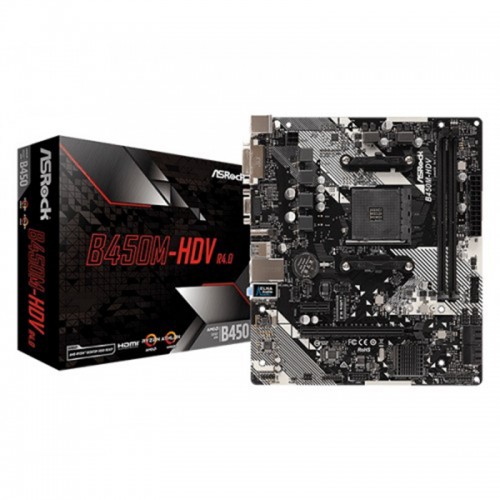

The ASRock B450M-HDV R4.0 AMD Motherboard is listed at Computer Vision BD for ৳8,550, with a 3 Years warranty and is currently out of stock, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
