| Primary Information | ||
| Supported CPU | Intel® 4th Gen Core™ i7 / i5 / i3, Pentium®, Celeron®, and Xeon® E3-1200 v3 series G1820, i3-4330, i5-4590S, i7-4770, Xeon® E3-1230 v3 |
|
| Chipset | Intel B85 Express Chipset |
|
| Form Factor | Micro-ATX (180 mm x 216 mm) |
|
| Audio | 3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 2.0 x16 Slot, 1x PCIe 2.0 x1 Slot |
|
| M.2 Socket | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 & SATA 3.0 NGFF modes via hardware jumper selection) |
|
| Memory | ||
| Type | 2x DDR3 DIMM Slots (240-pin) 1600 / 1333 / 1066 MHz |
|
| Slots | 2x DDR3 DIMM Slots (240-pin) |
|
| Supported Memory | 1600 / 1333 / 1066 MHz |
|
| Maximum Memory | Up to 16 GB (Supports up to 8 GB per single slot) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI Port | |
| USB (s) | 2x USB 3.0 Ports, 4x USB 2.0 Ports |
|
| VGA (s) | 1x VGA (D-Sub) Port | |
| LAN Port (s) | 1x RJ45 Gigabit LAN Port (Realtek® Gigabit Controller) |
|
| Wireless Communication module | 1x M.2 Wi-Fi / WLAN Slot |
|
| Supported Storage | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 & SATA 3.0 NGFF modes via hardware jumper selection) |
|
| Audio | 3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In) |
|
| Internal I/O Ports | 2x FUSB 2.0 Headers (Supports 4 additional USB 2.0 front ports) 1x 4-Pin CPU Fan Connector, 1x 3-Pin System (SYS) Fan Connector 1x 14-Pin TPM 2.0 Header, 1x 2×5-Pin Diagnostic Card Header, 1x JCMOS Header 1x FPANEL Front Panel Header, 1x Front Panel Audio Header 24-Pin ATX Main Power + 4-Pin 12V CPU Power Receptacle |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

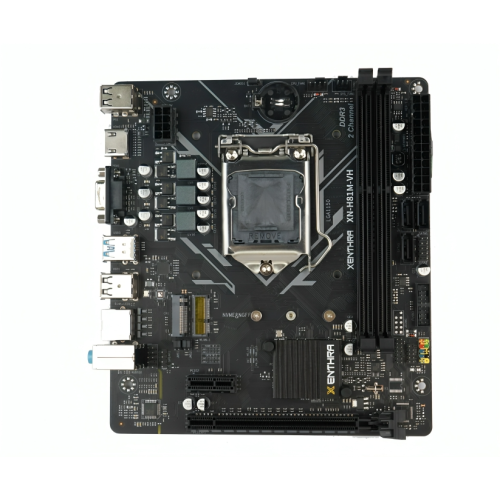

The XENTHRA XN-H81M-VH is a dependable and cost-effective Micro-ATX motherboard built for Intel 4th Generation Core™ processors. Designed to deliver reliable performance for home, office, and business applications, it provides a stable foundation for everyday computing while offering excellent compatibility and long-term durability.
Supporting DDR3 memory, PCIe expansion, SATA storage, and multiple USB ports, the XN-H81M-VH ensures smooth multitasking and fast data access. Its compact Micro-ATX form factor makes it ideal for small and mid-sized PC cases, allowing users to build space-efficient desktop systems without sacrificing essential features. The motherboard also includes integrated HD audio and high-speed LAN connectivity for an enhanced multimedia and networking experience.
Built with quality components and efficient power management, the XN-H81M-VH offers dependable system stability and reliable performance for daily workloads. Whether you're upgrading an existing Intel 4th Gen PC or building a budget-friendly desktop for office work, education, or home use, this motherboard provides the perfect balance of performance, value, and reliability.
The XENTHRA XN-H81M-VH is an excellent choice for users looking for an affordable, durable, and feature-rich motherboard compatible with Intel 4th Generation processors.
