| Primary Information | ||
| Supported CPU | Intel® 6th, 7th, 8th & 9th Gen Core™ / Pentium® / Celeron® Processors i3-6100, i3-8100, i5-8400, i5-9400, i7-9700, i7-9700K, etc. |
|
| Chipset | Intel® H110 Express Chipset |
|
| Form Factor | Micro-ATX (190 mm x 225 mm / 180 mm x 216 mm), 4-Layer PCB |
|
| Audio | 3x Audio Jacks (Line Out, Mic In, Line In) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x16 Slot (PCIe 3.0 x16 signal) 1x PCIe 2.0 x1 Slot (PCIe 2.0 x1 signal) |
|
| M.2 Socket | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 mode) 4x SATA 3.0 (6 Gbps) Ports |
|
| Memory | ||
| Type | 2x DDR4 DIMM Slots Up to DDR4 2666 MHz |
|
| Slots | 2x DDR4 DIMM Slots |
|
| Supported Memory | Up to DDR4 2666 MHz |
|
| Maximum Memory | Up to 64 GB (Supports 2x 32GB or 16GB per single slot) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI Port | |
| USB (s) | 2x USB 3.0 Ports, 4x USB 2.0 Ports 1x USB 3.0 Header (Expandable to 2x USB 3.0 ports) 1x USB 2.0 Header (Expandable to 2x USB 2.0 ports) |
|
| VGA (s) | 1x VGA (D-Sub) Port | |
| LAN Port (s) | 1x RJ45 Port (Realtek® Gigabit LAN) |
|
| Supported Storage | 1x M.2 Slot (Supports NVMe PCIe 2.0 x4 mode) 4x SATA 3.0 (6 Gbps) Ports |
|
| Audio | 3x Audio Jacks (Line Out, Mic In, Line In) |
|
| Internal I/O Ports | 1x COM Header (Supports RS232 mode) 1x 4-Pin CPU Fan Connector, 1x 4-Pin SYS Fan, 1x 3-Pin SYS Fan 2x 5-Pin Diagnostic Card Header, 1x JBAT Jumper Cap |
|
| TPM (Trusted Platform Module ) | 1x TPM 2.0 Header |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years |
|
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.

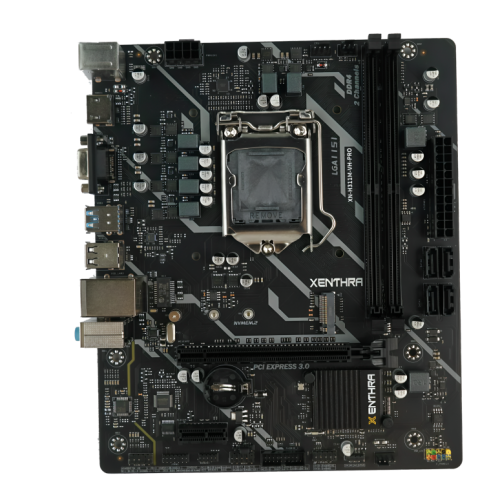

The XENTHRA XN-H311M-VH-PRO Intel 9th Gen mATX Motherboard is listed at Computer Vision BD for ৳6,550 (regular price ৳8,500), with a 3 Years warranty and is currently out of stock, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
