Pay cash discounted price and save
EMI available for 12 months on regular price: ৳52,000
| Main Feature | ||
| Type | Gigabit EdgeSmart PoE+ Switch |
|
| Port | 24 x Gigabit PoE+ ports 2 x Gigabit SFP ports (100Mbps / 1000Mbps) |
|
| Network Standard | IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az |
|
| Transmission Method | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) |
|
| Data Transmission Rate | Switch fabric: 52Gbps RAM buffer: 512KB Jumbo Frames: 9KB Forwarding rate: 38.69Mpps (64-byte packet size) |
|
| MAC Address Table | 8K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | Yes | |
| Power Supply | Input: 100 – 240V AC, 50/60Hz, 4.4A Max. consumption: 14.93W (without PD load) / 399.41W (with full PD load) PoE budget: 380W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power + and pins 3,6 for power - PD auto classification |
|
| Dimensions (L x W x H) | 440 x 195 x 44mm (17.3 x 7.68 x 1.73 in.) |
|
| Weight | 3.06kg (6.75 lbs.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Years | |

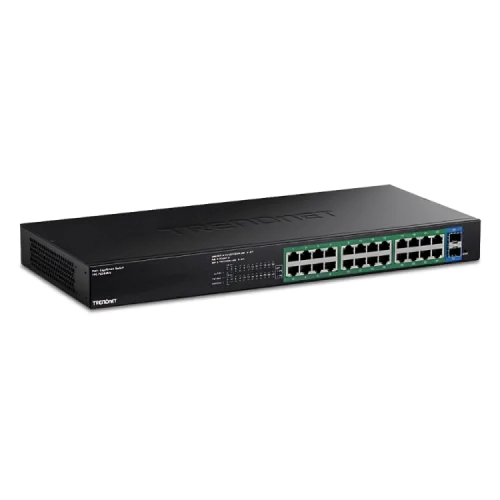

The TRENDnet TPE-TG262ES is a high-performance 26-port EdgeSmart Gigabit PoE+ switch designed for enterprises, security networks, and VoIP applications. It has 24 Gigabit PoE+ ports and two Gigabit SFP ports that provide rates of 100Mbps and 1000Mbps, allowing for a variety of connectivity options. With a powerful 380W PoE power budget, it can offer up to 30W per port, making it suitable for powering IP cameras, VoIP phones, and wireless access points. The TRENDnet TPE-TG262ES 26-Port Gigabit PoE+ Switch has a switching capability of 52Gbps, providing seamless data transmission, and its web-based management interface allows for simple configuration of VLAN, QoS, IGMP Snooping, and static link aggregation to improve network efficiency. The TRENDnet TPE-TG262ES 26-Port Gigabit Switch is designed to fulfill IEEE 802.3af and IEEE 802.3at PoE+ standards. It also supports advanced networking protocols such as IEEE 802.1Q VLAN tagging, private VLANs, asymmetric VLANs, and voice VLANs, as well as five user-defined OUIs for optimal VoIP performance. QoS features include 802.1p Class of Service, Differentiated Services Code Point (DSCP), port-based QoS, stringent priority queue scheduling, and weighted fair queuing. The TRENDnet TPE-TG262ES 26-Port EdgeSmart Gigabit PoE+ Switch provides bandwidth control per port beginning at 16Kbps, allowing for accurate traffic management. IGMP Snooping v1/2/3 reduces network congestion by limiting unknown multicast sources and allowing up to 32 multicast groups. Additional features, such port mirroring and storm control, improve network monitoring and resilience. The TRENDnet TPE-TG262ES 26-Port Network Switch is built for dependability, with a forwarding rate of 38.69Mpps for 64-byte packets, a 512KB RAM buffer, and an 8K MAC address table. It supports both Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for increased redundancy. The clever dual-fan cooling system manages heat efficiently while reducing noise levels to 51 dBa. The TRENDnet TPE-TG262ES 26-Port EdgeSmart Gigabit PoE+ Switch, housed in a 1U 19" rack-mountable metal shell, is NDAA and TAA certified for the United States and Canada, making it a robust, scalable, and secure PoE+ network solution for companies.
Get specific details about this product from customers who own it.
