Pay cash discounted price and save
EMI available for 12 months on regular price: ৳41,500
| Main Feature | ||
| Type | Gigabit EdgeSmart PoE+ Switch |
|
| Port | 16 x Gigabit PoE+ ports 2 x Gigabit SFP ports (100Mbps / 1000Mbps) |
|
| Network Standard | IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az |
|
| Transmission Method | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) |
|
| Data Transmission Rate | Switch fabric: 36Gbps RAM buffer: 512KB Jumbo Frames: 9KB Forwarding rate: 26.78Mpps (64-byte packet size) |
|
| MAC Address Table | 8K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | Yes | |
| Power Supply | Input: 100 – 240V AC, 50/60Hz, 2.6A Max. consumption: 9.77W (without PD load) / 248.18W (with full PD load) PoE budget: 240W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power |
|
| Dimensions (L x W x H) | 328 x 228 x 44mm (12.9 x 8.98 x 1.73 in.) |
|
| Weight | 2.58kg (5.69 lbs.) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Years | |

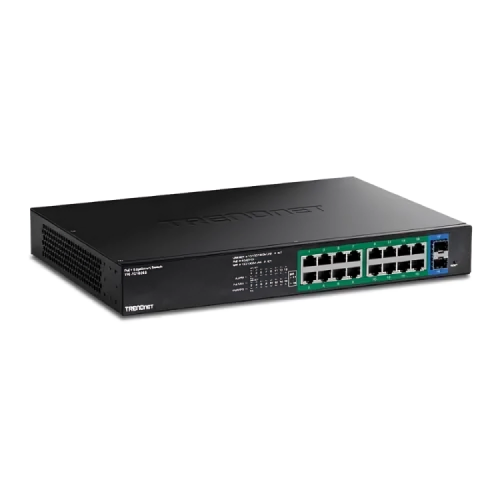

The TRENDnet TPE-TG182ES is an 18-port EdgeSmart Gigabit PoE+ switch that efficiently delivers power and data for enterprises, security networks, and VoIP applications. It provides diverse connectivity options for various network devices by including 16 Gigabit PoE+ ports and two Gigabit SFP ports that support 100Mbps and 1000Mbps speeds. The TRENDnet Network Switch has a PoE power budget of 240W, with up to 30W per port, making it suitable for powering IP cameras, VoIP phones, and wireless access points. This TRENDnet TPE-TG182ES PoE Switch features a switching capability of 36Gbps, ensuring fast data transfer, while the web-based management interface simplifies network configuration by enabling VLAN, QoS, IGMP Snooping, and static link aggregation for improved performance. This TRENDnet TPE-TG182ES 18-Port EdgeSmart Gigabit PoE+ Switch complies with IEEE 802.3af and IEEE 802.3at PoE+ standards and has IEEE 802.1Q VLAN tagging, private VLANs, asymmetric VLANs, and voice VLANs, as well as five user-defined OUIs for optimizing VoIP applications. QoS features include 802.1p Class of Service, Differentiated Services Code Point (DSCP), port-based QoS, stringent priority queue scheduling, and weighted fair queuing. Bandwidth control per port enables rate restriction beginning at 16Kbps, ensuring effective traffic management. The TRENDnet TPE-TG182ES 18-Port EdgeSmart Gigabit PoE+ Switch IGMP Snooping v1/2/3 optimizes multicast traffic, reducing network congestion and supporting up to 32 multicast groups. The port mirroring capability enables network monitoring, while storm management prevents excessive broadcast and multicast traffic. With a forwarding rate of 26.78Mpps for 64-byte packets, a 512KB RAM buffer, and an 8K MAC address database, the TRENDnet TPE-TG182ES Network Switch provides dependable data processing. It supports both Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) to improve redundancy and loop prevention. The clever fan system eliminates noise during operation, and the 1U 19" rack-mountable metal shell is both sturdy and space-efficient. The TRENDnet TPE-TG182ES 18-Port EdgeSmart Gigabit PoE+ Switch, which includes two SFP ports for fiber connectivity, is a reliable and affordable networking solution for enterprises that want high-performance PoE+ and managed network features.
