Pay cash discounted price and save
EMI available for 12 months on regular price: ৳17,000
| Main Feature | ||
| Antenna | 2.4GHz: 2 x 3.2 dBi internal 5Ghz: 2 x 4.3 dBi internal |
|
| Button | Reset button |
|
| Temperature | 0° – 40° C (32° – 104° F) |
|
| Dimensions | 160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.) |
|
| Weight | 486g (1.07 lbs.) | |
| Power | ||
| PoE in | IEEE 802.3at Type 2 PoE PD Class 4 |
|
| Network | ||
| Wireless Rate | 1201Mbps (5GHz) + 567Mbps (2.4GHz) |
|
| Wireless frequency | 2.4GHz: 2.412 – 2.472GHz 5GHz: 5.180 – 5.320GHz |
|
| Wireless standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3at IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k IEEE 802.11n (up to 400Mbps) IEEE 802.11r IEEE 802.11v IEEE 802.11w IEEE 802.11ac Wave 2 (up to 867Mbps) IEEE 802.11ax (up to 1201Mbps) |
|
| Ethernet | 1 x PoE+ Gigabit LAN port (power input) |
|
| Wireless Security | Supports up to WPA3 encryption |
|
| Others | Operation Modes: Access Point Client Bridge WDS AP WDS Bridge WDS Station Repeater Features MU-MIMO OFDMA Band steering WiFi traffic shaping 802.1Q VLAN assignment per SSID IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6)) Multi-Language interface, English, French, Spanish, German, Russian LEDs on/off External Captive Portal (Coovachilli server authentication) Internal Captive Portal (Local user account authentication and customizable portal page) Redirect Captive Portal 802.11k intelligent radio resource management RSSI Threshold (client signal strength and connectivity control) Airtime Fairness IGMP Snooping Management/Monitoring Web based management SNMP v1/v3 STP Event logging Ping test Traceroute Telnet Reboot & scheduled automatic reboot Access Control Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK MAC filter Maximum client limit QoS: Bandwidth control per SSID or client SSID: Up to 8 SSIDs per wireless band (24 total) |
|
| Manufacture Warranty | ||
| Warranty | 2 Years | |

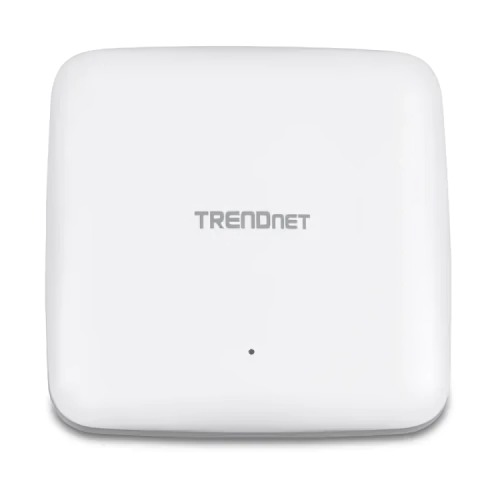

The TRENDnet TEW-921DAP AX1800 Dual Band WiFi 6 PoE+ Access Point provides high-performance wireless networking. It supports AX1800 dual-band WiFi, with rates of up to 1201Mbps on 5GHz and 567Mbps on 2.4GHz, while MU-MIMO and OFDMA technologies improve performance in high-density regions. The TRENDnet Access Point has several operating modes, including Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater. It has a single Gigabit PoE+ LAN connection, an optional power port, a mounting plate for ceiling or wall installation, and LED indicators that can be turned on and off. The TRENDnet TEW-921DAP Access Point supports up to WPA3 encryption, has a captive portal for hotspot use, and supports up to 8 SSIDs per band, for a total of 24. WiFi traffic shaping, airtime fairness, RSSI threshold settings, band steering, and IGMP snooping improve overall management and performance. TRENDnet Hive provides cloud-based management, including remote configuration, firmware updates, and monitoring. TRENDnet TEW-921DAP AX1800 Dual Band WiFi 6 PoE+ Access Point supports web-based management, SNMP v1/v3, STP, event recording, ping test, traceroute, and scheduled reboots. 802.1Q supports VLAN assignment per SSID, and IPv6 protocols include Link-Local, Static, SLAAC, and DHCPv6. The TRENDnet TEW-921DAP Dual Band Access Point provides security features such as MAC filtering, maximum client limits, and a variety of encryption types, including WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, and WPA3/PSK. It supports both external (Coovachilli) and internal captive portals with customized pages. The 2x2:2 MIMO antenna design has an internal gain of 3.2 dBi on 2.4GHz and 4.3 dBi on 5GHz, and can support modulation schemes up to 1024-QAM. Under FCC limitations, wireless output power can reach 30 dBm at 5GHz and 29 dBm at 2.4GHz. The receiving sensitivity ranges from -90 dBm to -63 dBm, depending on the standard. The TRENDnet TEW-921DAP AX1800 Dual Band WiFi 6 PoE+ Access Point uses IEEE 802.3at PoE+ and has a maximum power consumption of 15W, with an optional 12V DC adaptor.
