Pay cash discounted price and save
EMI available for 12 months on regular price: ৳17,500
| Main Feature | ||
| Type | Gigabit Web Smart Switch |
|
| Port | 8 x Gigabit ports 2 x shared SFP slots |
|
| Network Standard | IEEE 802.1D IEEE 802.1Q IEEE 802.1S IEEE 802.1X IEEE 802.1p IEEE 802.1w IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.1ab IEEE 802.3ab IEEE 802.3ad IEEE 802.3az |
|
| Data Transmission Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex) Switch fabric: 16 Gbps RAM buffer: 1 MB Jumbo Frames: 10 KB HOL Blocking Prevention Forwarding rates: 11.9 Mpps (64-byte packet size) |
|
| MAC Address Table | 16K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | LED indicators | |
| Power Supply | Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 13.8 Watts (Max.) |
|
| Dimensions (L x W x H) | 280 x 180 x 44 mm (11 x 7.1 x 1.7 in.) Rack mountable 1U height |
|
| Weight | 1.5 kg (3.4 lbs.) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Year | |

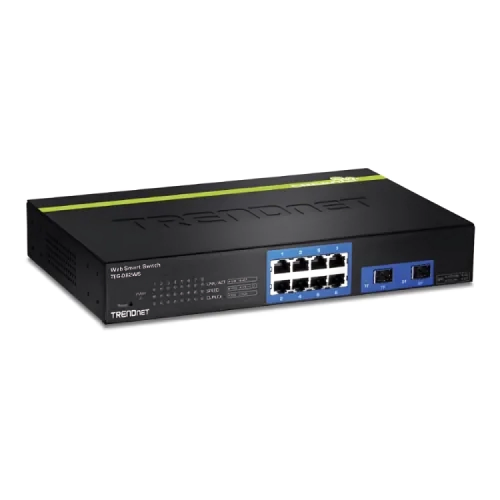

The TRENDnet TEG-082WS is an 8-port Web Smart Gigabit switch with two shared SFP ports, designed for high-performance networking. Its 16Gbps switching capacity and full-duplex Gigabit rates of up to 2000Mbps per port assure smooth data transfer for companies, data centers, and VoIP applications. The TRENDnet TEG-082WS 8-Port Gigabit Switch's built-in power supply and fanless design reduce energy consumption and operating noise, making it a practical and dependable choice for a variety of networking scenarios. It features rackmount brackets for easy installation in server racks. The TRENDnet TEG-082WS 8-Port Web Smart Gigabit Switch supports IEEE 802.1D STP, 802.1w RSTP, and 802.1s MSTP for spanning tree protocols, which ensure network stability and loop prevention. Static link aggregation and 802.3ad dynamic LACP optimize bandwidth for high-traffic networks. It supports a wide range of VLAN types, including port-based VLAN, 802.1Q tagged VLAN, asymmetric VLAN, and private VLAN, and can accommodate up to 256 VLAN groups. The TRENDnet TEG-082WS 8-Port Web Smart Gigabit Switch's dynamic GVRP and voice VLAN features increase versatility for VoIP applications by allowing up to 10 user-defined OUIs. QoS elements include 802.1p Class of Service (CoS), DSCP, tight priority, and weighted round-robin queue scheduling. IGMP snooping v1/2/3 with static multicast addresses enhances multicast traffic management for up to 256 entries. It also supports port mirroring, loopback detection, and DHCP snooping to improve security. The TRENDnet TEG-082WS Network Switch supports access control features such as 802.1X port-based authentication, RADIUS, TACACS+, trusted hosts, and Denial of Service (DoS) protection. Management tools include an HTTP/HTTPS web-based GUI, SNMP v1/2c/3, RMON v1, and virtual cable testing. It supports IPv6, including static IP addresses, DHCPv6, and neighbor detection. With sophisticated features, a fanless energy-efficient design, and a rack-mountable form factor, the TRENDnet TEG-082WS 8-Port Web Smart Gigabit Switch is a great choice for businesses looking for a high-performance, secure, and scalable networking solution.
