| Primary Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors |
|
| Chipset | AMD B850 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm | |
| Audio | Realtek® ALC4080 CODEC High Definition Audio 2-channel |
|
| Memory | ||
| Type | Mini-ITX | |
| Slots | 2 x DDR5 DIMM | |
| Supported Memory | Support for DDR5 8800(OC)/ 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules |
|
| Maximum Memory | 2 x DDR5 DIMM sockets supporting up to 128 GB | |
| Graphics | ||
| Graphics | AMD Radeon™ Graphics | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Realtek® Wi-Fi 7 RTL8922AE - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations. |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs 2 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x speaker header 1 x front panel audio header (routed from the adapter card on the rear panel) 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x reset jumper 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| Others Features | ||
| Special Features | Support for Windows 11 64-bit, I/O Controller: iTE® I/O Controller Chip, Back Panel Connectors: 1 x Q-Flash Plus button 1 x HDMI port* 2 x antenna connectors (2T2R) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x audio jacks |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

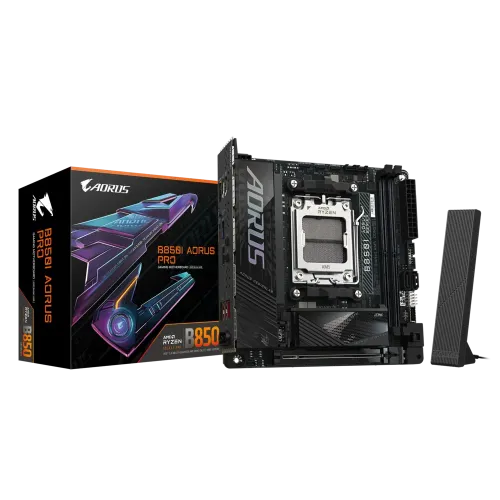

The GIGABYTE B850I AORUS PRO is a Mini‑ITX socket AM5 motherboard built to deliver high-end performance in compact systems. Supporting AMD Ryzen 7000, 8000, and 9000 Series processors, it offers dual-channel DDR5 memory support up to 8,400 MT/s, with overclocking enabled via EXPO/XMP profiles (up to 128 GB). Its robust 8+2+1‑phase digital VRM design on a 10-layer, 2× copper, low-loss PCB ensures stable power delivery even under heavy load. Storage is future‑ready: it includes one PCIe 5.0 M.2 slot and one PCIe 4.0 M.2 slot, plus support for high‑speed PCIe 5.0 x16 graphics cards through GIGABYTE’s reinforced UD-slot design. Connectivity is modern and builder-friendly, featuring Wi‑Fi 7 with directional high‑gain antenna, Bluetooth 5.4, 2.5 GbE LAN, USB 3.2 Gen2 Type‑C, Q‑Flash Plus BIOS update, EZ‑Latch screwless SSD installation, integrated I/O shield, and Smart Fan 6 control software and hardware. This combination of next-gen memory and storage, advanced thermal and power design, and intuitive build features makes the B850I AORUS PRO an excellent choice for compact, high-performance AM5 gaming and creator builds.
In Bangladesh, you can get original GIGABYTE AMD B850I AORUS PRO Mini-ITX AM5 Motherboard From Computer Vision BD. We have a large collection of latest GIGABYTE AMD AM5 Motherboard to purchase. Order Online Or Visit your Nearest Computer Vision BD Shop to get yours at lowest price.The GIGABYTE AMD B850I AORUS PRO Mini-ITX AM5 Motherboard has 3 Years Warranty.
