Pay cash discounted price and save
EMI available for 12 months on regular price: ৳22,700
| Primary Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors |
|
| Chipset | AMD B650 |
|
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe4.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe3.0 and running at x1 (PCIEX1) |
|
| M.2 Socket | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs |
|
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory |
|
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
|
| Max Shared Memory | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 2 x Display Ports |
|
| USB (s) | CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps) | |
| Wireless Communication module | Wireless Communication module Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless Realtek Wi-Fi 6 RTL 8851BE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMeSSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x Audio jacks |
|
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x Display Ports 2 x SMA antenna connectors (2T2R) (1T1R)* * Only for Realtek Wi-Fi 6 RTL8851BE 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| D-Sub (s) | ||
| DVI-D (s) | ||
| Others Features | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years |
|

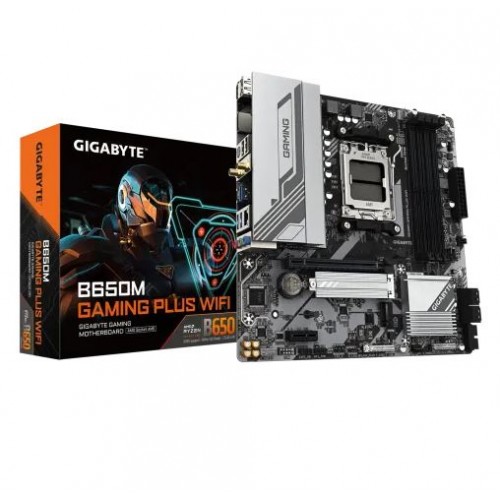

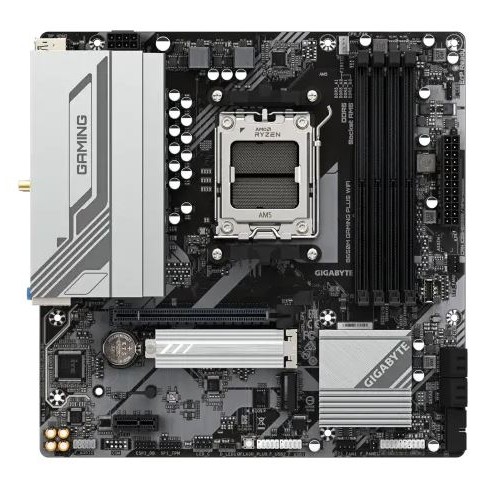

The GIGABYTE B650M GAMING PLUS WIFI DDR5 AM5 Motherboard is the perfect foundation for building a high-performance PC, designed to support AMD Ryzen 7000, 8000, and 9000 Series processors. With its AMD Socket AM5 compatibility, this motherboard ensures unmatched speed and power for gamers, creators, and tech enthusiasts. The 5+2+2 Phases Digital VRM Solution provides robust and efficient power delivery, ensuring stable performance during intensive workloads and gaming sessions. This GIGABYTE B650M GAMING PLUS WIFI Motherboard Equipped with dual-channel DDR5 memory support, this motherboard accommodates up to four SMD DIMMs and is compatible with both AMD EXPO and Intel XMP memory modules, allowing you to experience lightning-fast speeds and seamless multitasking. Storage performance is elevated with a PCIe4.0 x4 M.2 connector, ensuring quick load times and smooth gameplay. For easy GPU upgrades, the EZ-Latch PCIex16 slot features a quick-release design, making installation and removal effortless. Stay connected like never before with next-generation networking features, including Wi-Fi 6E (802.11ax) and 2.5GbE LAN, delivering ultra-fast connectivity for gaming, streaming, and content creation. The motherboard also supports multiple display options with dual Display Ports and an HDMI port for versatile configurations. Efficient cooling is guaranteed with Smart Fan 6, which includes multiple temperature sensors and hybrid fan headers with FAN STOP technology to maintain optimal performance and reduce noise. The Q-Flash Plus feature lets you update the BIOS without needing to install the CPU, memory, or graphics card, making upgrades simple and hassle-free. The GIGABYTE B650M GAMING PLUS WIFI motherboard combines cutting-edge performance, advanced connectivity, and reliable cooling, making it the ultimate choice for building a powerful, future-ready PC.
