Pay cash discounted price and save
| General Information | ||
| Image Sensor | 1/2.7" CMOS |
|
| Effective Pixels | 6MP | |
| IR Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) |
|
| Others | Scanning System: Progressive Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Minimum Illumination: 0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) S/N Ratio: ＞56 dB Illumination Distance: Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm light) Illuminator On/Off Control: Auto; Manual Illuminator Number: 1 (Multi-core (IR + warm) light) Angle Adjustment: Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° Intelligence Human Detection: Support the classification and accurate detection of human Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Built-in Mic. Video Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec: Smart H.265+; Smart H.264+ Video Frame Rate: Main stream: 3200 × 1800@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) Stream Capability: 2 streams Resolution: 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control: VBR; CBR Video Bit Rate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps Day/Night: Auto(ICR)/Color/B/W BLC: Yes HLC: Yes WDR: DWDR White Balance: Auto; natural; street lamp; outdoor; manual; regional custom Gain Control: Auto/Manual Noise Reduction: 3D NR Motion Detection: OFF/ON (4 areas, rectangular) Region of Interest (RoI): Yes (4 areas) Smart Illumination: Yes Smart Dual Light: Yes Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) Mirror: Yes Privacy Masking: 4 areas Audio Built-in MIC: Yes, built-in Mic Audio Compression: G.711a; G.711Mu; PCM; G.726 Alarm Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
|
| Lens | ||
| Lens Type | Fixed-focal |
|
| Focal Length | 2.8 mm |
|
| Max Aperture | F1.6 Max |
|
| Angle of View | 2.8 mm: H: 110°; V: 58°; D: 132° |
|
| Others | Iris Control: Fixed Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft) |
|
| Physical Specification | ||
| Dimensions (W x D x H) | 85.6 mm × Φ94.0 mm (3.37" × Φ3.70") |
|
| Weight | Net Weight: 0.34 kg (0.75 lb) Gross Weight: 0.45 kg (0.99 lb) |
|
| Power | Power Supply: 12V DC/PoE (802.3af) Power Consumption: Basic: 2 W (12 VDC), 2.9 W (PoE); Max. : 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
|
| Others | Network Network Port: RJ-45 (10/100 Base-T) SDK and API: Yes Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P Interoperability: ONVIF (Profile S & Profile T); CGI User/Host: 20 (Total bandwidth: 48 M) Storage: FTP Browser: IE; Chrome; Firefox Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care Mobile Client: iOS; Android Cyber Security: Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade Protection: IP67 Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Environment Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95%(RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95%(RH), non-condensing |
|
| Warranty Information | ||
| Warranty | 1 Year | |

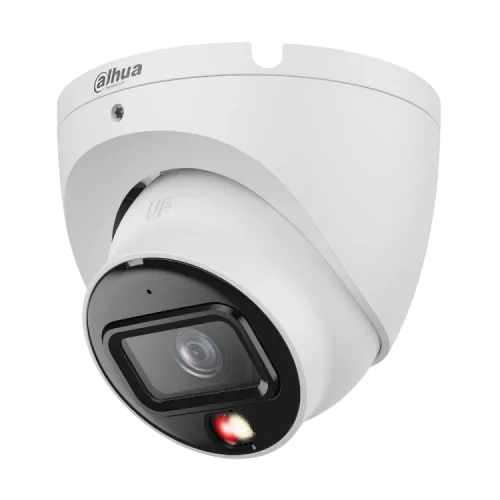

The Dahua DH-IPC-HDW1639T-A-IL 6MP IP Camera is a premium surveillance solution that combines advanced imaging, intelligent features, and robust design for both indoor and outdoor security. This Dahua DH-IPC-HDW1639T-A-IL 6MP Dome IP Camera is equipped with a 1/2.7" CMOS sensor and delivers a maximum resolution of 6MP (3200 × 1800), capturing clear, detailed video. Featuring a 2.8 mm fixed-focal lens with F1.6 aperture, this Dahua DH-IPC-HDW1639T-A-IL 6MP Smart Dual Light Dome IP Camera offers a wide 110° horizontal field of view and close focus distance of 1.1 m, ensuring optimal coverage. Its dual illumination system with IR and built-in warm light provides night vision up to 30 meters, enhanced by Smart Dual Light technology for superior image quality in low-light conditions. This Dahua DH-IPC-HDW1639T-A-IL 6MP Dome supports human detection, motion detection, video tampering alerts, privacy masking, and works seamlessly with a Smart NVR for intelligent video search. It supports H.265/H.264 compression, multiple resolutions up to 6MP, and advanced features like DWDR, BLC, HLC, 3D noise reduction, and region-of-interest settings. Audio is integrated via a built-in microphone, and alerts include motion, tampering, and security exceptions. Designed for durability, the Dahua DH-IPC-HDW1639T-A-IL Dome Camera offers IP67 protection against dust and water and operates reliably in temperatures from –40°C to +60°C. Power options include PoE (802.3af) or 12V DC, and network support covers IPv4/IPv6, ONVIF, RTSP, HTTP, TCP, UDP, and more. Supported by Smart PSS Lite, DSS, DMSS, and DoLynk Care, this camera ensures secure, reliable, and intelligent surveillance for homes, offices, or industrial sites.
