Pay cash discounted price and save
Memory | ||
Type | Z690 | |
Graphics | ||
Graphics | 128GB | |
Connector & Ports | ||
HDMI | Graphics 1 x DisplayPort (Support max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
Others Features | ||
Special Features | Intel 12th Gen Processors* 1 x PCIe 5.0 x16 slot - Intel 12th support PCIe 5.0 x16 mode Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode) 1 x PCIe 3.0 x1 slot |
|
Warranty Information | ||
Manufacturing Warranty | Intel12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports |
Brand | ASUS |
Series | ROG |

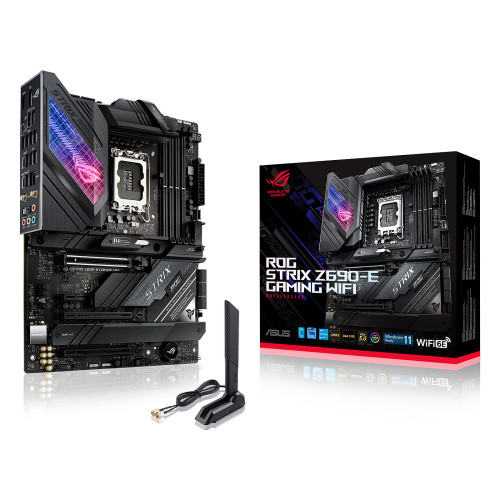

Model | STRIX Z690-E GAMING WIFI |
Supported CPU | |
CPU Socket Type | LGA 1700 |
CPU Type | Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors |
Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* |
Chipsets | |
Chipset | Intel Z690 |
Onboard Video | |
Onboard Video Chipset | Supported only by CPU with integrated graphic |
Memory | |
Number of Memory Slots | 4×288pin (DDR5) |
Memory Standard | DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
Expansion Slots | |
PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
PCI Express x1 | 1 x PCIe 3.0 x1 |
Storage Devices | |
SATA 6Gb/s | 6 x SATA 6Gb/s |
M.2 | Intel 12th Gen Processors: |
Intel Optane Ready | Yes |
SATA RAID | 0/1/5/10 |
Onboard Audio | |
Audio Chipset | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
Audio Channels | 7.1 Channels |
Onboard LAN | |
LAN Chipset | Intel I225-V |
Max LAN Speed | 10/100/1000/2500Mbps |
Wireless LAN | Wi-Fi 6E |
Bluetooth | Bluetooth 5.2 |
Rear Panel Ports | |
Back I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
Internal I/O Connectors | |
Onboard USB | 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) |
Other Connectors | Fan and Cooling related |
Physical Spec | |
Form Factor |
Get specific details about this product from customers who own it.
