Pay cash discounted price and save
EMI available for 12 months on regular price: ৳60,500
| System | ||
| Operating System | Linux system |
|
| Audio and Video | ||
| IP Camera Input | 1 Channel | |
| Two-Way Talk | 1 Channel, RCA | |
| Display | ||
| Interface | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
| Decoding Capacity | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 |
|
| Recording | ||
| Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
| Video Detection And Alarm | ||
| Video Detection | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control, Behavior Search, Vehicle Search, People Flow Counting, Crowd Density Monitoring | |
| Alarm Input | 16 Channel General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection Alert Alarm: IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|
| Playback And Backup | ||
| Sync Playback | 16 Channel | |
| Network | ||
| Interface | 2 RJ45 | |
| Ethernet Port | 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
| Maximum User Access | Remote Users: 128 |
|
| Storage | ||
| Internal HDD | 8 SATA interface |
|
| HDD Mode | Up to 10TB for each HDD |
|
| eSATA | 1 eSATA interface |
|
| Auxiliary Interface | ||
| USB | Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
|
| RS232 | 1 | |
| RS485 | 1 | |
| Power | ||
| Power Supply | 100~240 VAC | |
| Power Consumption | ≤ 25 W (without HDD) |
|
| Component Environment | ||
| Operational Conditions | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|
| Construction | ||
| Dimensions | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") |
|
| Net Weight | ≤ 5.7Kg (12.57lb) |
|
| Warranty | ||
| Warranty | 2 Year Warranty |
|

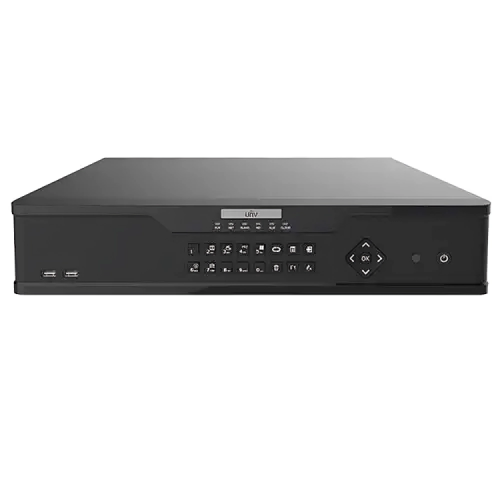

A Uniview NVR308-16X 16 Channel 4K 8HDDs NVR supports mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols and supports Ultra H.265/ H.265/ H.264. It has Two-way Audio Input 1 Channel, RCA. The Uniview NVR308-16X 16 Channel 4K 8HDDs NVR supports TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, and you can change camera settings via local network. This Uniview NVR308-16X 16 Channel 4K 8HDDs NVR audio output is 1 channel, RCA and G.711A, G.711U Audio compression and 3/ 4/ 5/ 7/ 9/ 10/ 12/ 16 Live view screen corridor mode and 16 channel Event snapshot up to 4K resolution and 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30 Decoding capability.
RAID(Redundant Array of Independent Disks)
The Uniview NVR308-16X 16 Channel 4K 8HDDs NVR uses RAID Data Recovery Technology. The RAID is a way of storing your data at the same time in different places on multiple HDDs. RAID technology Uses calculations to ensure your data sets can be retrieved from an array even if one or more disks fail and protects your data. This process copies data from one disk to more additional disks. If your data is deleted from one Disk so this data is available from more disks.
People Counting
A Uniview NVR308-16X 16 Channel 4K 8HDDs NVR features the latest VCA Technology. This Technology has VCA Search to do People Flow Counting, Crowed Density Monitoring, Behavior Search, Vehicle Search, and other object searching. This Uniview NVR has Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, and Vehicle Control.
