Pay cash discounted price and save
EMI available for 12 months on regular price: ৳14,500
| Main Feature | ||
| Type | Gigabit EdgeSmart PoE+ Switch |
|
| Port | 8 x Gigabit PoE+ ports |
|
| Network Standard | IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3az |
|
| Transmission Method | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) |
|
| Data Transmission Rate | Switch fabric: 16Gbps RAM buffer: 192KB Jumbo Frames: 9KB Forwarding rate: 11.9Mpps (64-byte packet size) |
|
| MAC Address Table | 4K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | Yes | |
| Power Supply | Input: 100 – 240V AC, 50/60Hz, 1.2A Output: 54V DC, 1.67A external power adapter Max. consumption: 68.6W PoE budget: 64W 802.3at: Up to 30W per port PoE Mode A: Pins 1,2 for power and pins 3,6 for power |
|
| Dimensions (L x W x H) | 171 x 97.8 x 28.6mm (6.73 x 3.85 x 1.12 in.) |
|
| Weight | 423g (14.92 oz.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Years | |

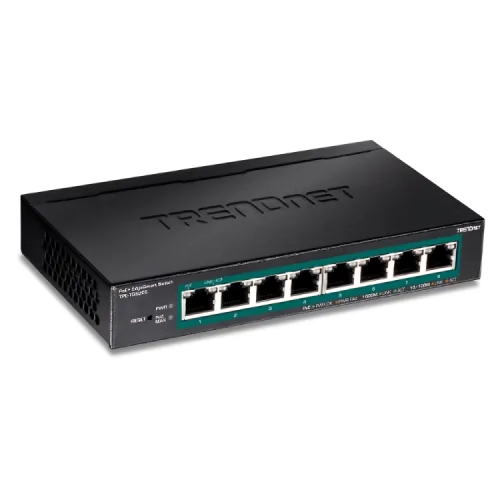

The TRENDnet TPE-TG82ES is an innovative 8-port EdgeSmart Gigabit PoE+ switch intended for small to medium-sized networks that require efficient power and data management. With eight Gigabit PoE+ ports and a 64W PoE power budget, it can offer up to 30W per port, making it perfect for VoIP phones, IP cameras, and wireless access points. TRENDnet Network Switch has a 16Gbps switching capacity and assures smooth data transmission. Its fanless metal body delivers silent operation and can be wall-mounted for flexible deployment. The TRENDnet TPE-TG82ES 8-Port PoE Switch's user-friendly web-based management interface enables VLAN configuration, QoS priority, IGMP Snooping, and static link aggregation, hence improving network performance and security. This TRENDnet TPE-TG82ES 8-Port PoE Switch is compliant with IEEE 802.3af and IEEE 802.3at PoE+ standards and supports advanced networking protocols such as IEEE 802.1Q VLAN tagging, port-based VLANs, private VLANs, asymmetric VLANs, and voice VLANs. It also has five user-defined OUIs for VoIP applications. Quality of Service (QoS) elements include port-based QoS, 802.1p Class of Service, stringent priority queue scheduling, and weighted fair queueing. The TRENDnet TPE-TG82ES 8-Port EdgeSmart Gigabit PoE+ Switch has bandwidth management per port and supports rate limiting to a minimum of 8Kbps. IGMP Snooping v1/2/3 optimizes multicast bandwidth by blocking unknown multicast sources and can support up to 32 multicast groups. Additionally, port mirroring allows for network monitoring, while storm control avoids network congestion. The TRENDnet TPE-TG82ES PoE Switch prioritizes performance, with an 11.9Mpps forwarding rate for 64-byte packets, a 192KB RAM buffer, and a 4K MAC address database. It includes Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) to increase network redundancy. PoE Mode A provides power to devices via pins 1, 2, and 3,6 with built-in overcurrent and short-circuit protection. It is energy efficient when powered by an external 54V DC, 1.67A power adapter and consumes a maximum of 68.6W. The TRENDnet TPE-TG82ES 8-Port EdgeSmart Gigabit PoE+ Switch meets NDAA and TAA regulations in the United States and Canada, making it a dependable and cost-effective alternative for organizations looking for a managed PoE network switch.
