| Main Feature | ||
| Type | Gigabit PoE+ Switch |
|
| Port | 4 x Gigabit PoE+ ports 1 x Gigabit port DIP switch |
|
| Network Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3p IEEE 802.3af IEEE 802.3at |
|
| Data Transmission Rate | Switch Fabric: 10Gbps RAM Buffer: 128KB Jumbo Frames: 9KB Forwarding rate: 7.44Mpps (64-byte packet size) Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) |
|
| MAC Address Table | 2K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | Yes | |
| Power Supply | PoE budget: 60W PoE Mode A: Pins 1,2 for power and pins 3,6 for power Input: 100 – 240 V AC, 50/60Hz, 2.5A Output: 54V DC, 1.3A external power adapter Max. consumption: 64.3W |
|
| Dimensions (L x W x H) | 121 x 75 x 26mm (4.76 x 2.95 x 1 in.) |
|
| Weight | 246g (8.68 oz.) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 01 Year | |

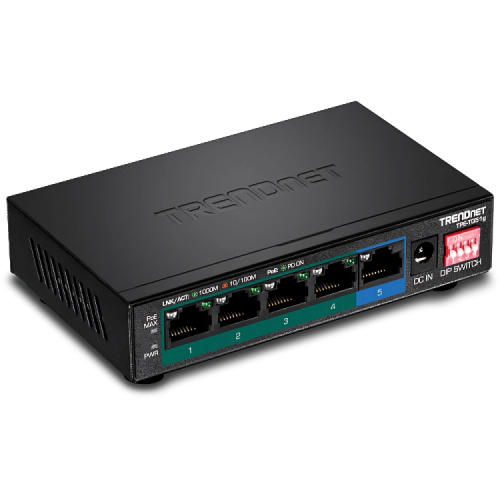

The TRENDnet TPE-TG51g 5-Port Gigabit PoE+ Switch delivers data and power over existing Ethernet cables to PoE devices, such as access points and IP cameras. The TRENDnet PoE Switch has 4 Gigabit PoE+ ports that can deliver up to 30W of power per port and 1 Gigabit port to connect a non-PoE device or an uplink port. It has a 60W PoE power budget and a DIP switch to extend the PoE+ signal up to 200m (656 ft.) at 10 Mbps for long-distance deployments. The DIP switch also supports VLAN port isolation and QoS, which can improve network security and performance. The TRENDnet TPE-TG51g switch has a 10Gbps switching capacity to handle large amounts of data without congestion or delay. It also has a metal case that can provide durability and protection for the switch. The TRENDnet TPE-TG51g Gigabit PoE+ Switch has a wall-mountable design to easily install on a wall or a surface.
