Pay cash discounted price and save
EMI available for 12 months on regular price: ৳46,500
| Main Feature | ||
| Type | Gigabit Web Smart PoE+ Switch |
|
| Network Standard | IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az |
|
| Transmission Method | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex) |
|
| Data Transmission Rate | Switch fabric: 32 Gbps Ram buffer: 8 Mbits Jumbo Frames: 10 Kbytes HOL Blocking Prevention Forwarding rates: 23.8 Mpps |
|
| MAC Address Table | 16K entries | |
| Hardware Features | ||
| Interface | 16 x Gigabit PoE+ ports 2 x Shared SFP slots |
|
| LED | LED indicators | |
| Power Supply | Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 198 Watts (Max) PoE budget: 185 Watts |
|
| Dimensions (L x W x H) | 440 x 251 x 44.45 mm (17.3 x 9.9 x 1.75 in.) Rack mountable 1U height |
|
| Weight | 3.6 kg (7.9 lbs.) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 1 year | |

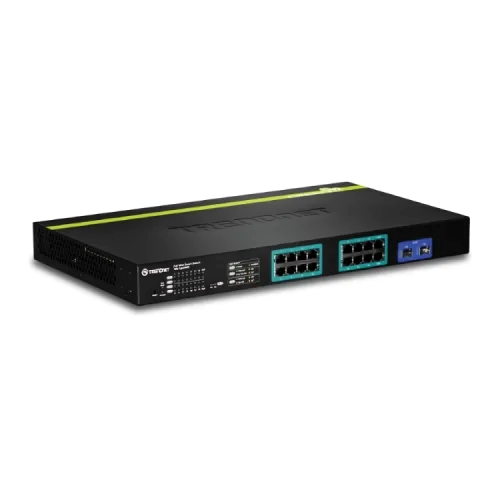

The TRENDnet TPE-1620WS is a powerful 16-port Gigabit PoE+ switch intended for high-performance networks. It has 16 PoE+ Gigabit ports and a total power budget of 185W, with up to 30W per port. In addition to the PoE+ ports, it has two shared SFP slots for fiber connectivity. The TRENDnet Network Switch has a switching capacity of 32 Gbps and a forwarding rate of 23.8 Mpps, providing uninterrupted data flow across the network. This TRENDnet TPE-1620WS 16 Port Gigabit PoE+ Switch is designed for scalability and stability and meets IEEE standards such as 802.3af/at PoE, spanning tree protocols, VLAN tagging, QoS, and link aggregation. Advanced management capabilities include a secure web interface, SNMP v1/v2c/v3, RMON, and virtual cable testing. It has complete IPv6 capabilities such as LLDP, static MAC addresses, and MIB monitoring. QoS settings include strong priority, WRR scheduling, and bandwidth restriction per port. TRENDnet TPE-1620WS PoE Switch supports up to 256 VLAN groups, asymmetric VLANs, private VLANs, and voice VLANs. Security features include 802.1X port-based access control, RADIUS, TACACS+, DHCP snooping, loopback detection, DoS protection, and extensive ACL support for IPv4 and IPv6. IGMP snooping (v1/v2/v3) and multicast support aid traffic management in bigger deployments. The TRENDnet TPE-1620WS 16 Port Gigabit PoE+ Switch has a 1U rack mount height and two internal fans with a maximum noise level of 54 dB(A). The TRENDnet TPE-1620WS 16 Port Gigabit PoE+ Switch is appropriate for both commercial and enterprise situations, thanks to power efficiency features such as 802.3az and long-lasting build quality. It has an MTBF of over 284,000 hours and can operate in temperatures ranging from 0 to 45°C.
