Pay cash discounted price and save
EMI available for 12 months on regular price: ৳72,000
| Main Feature | ||
| Type | Layer 2 Managed SFP Switch |
|
| Network Standard | IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1v IEEE 802.1ab IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3ae IEEE 802.3ad IEEE 802.3z |
|
| Transmission Method | Fast Ethernet SFP: 200Mbps (full duplex) Gigabit SFP: 2000Mbps (full duplex) 10G SFP+: 20Gbps (full duplex) |
|
| Data Transmission Rate | Switching capacity: 128Gbps RAM buffer: 2MB Jumbo frames: 12KB Forwarding mode: store and forward Forwarding rate: 95.2Mpps (64-byte packet size) |
|
| MAC Address Table | 32K entries | |
| Hardware Features | ||
| Interface | 24 x Gigabit SFP ports (100Mbps / 1Gbps) 4 x 10G SFP+ ports (1Gbps / 10Gbps) 1 x RJ-45 console port (out-of-band) |
|
| LED | LED indicators |
|
| Power Supply | Input: 100 – 240V AC, 50/60 Hz Max. consumption: 38.4W |
|
| Dimensions (L x W x H) | 440 x 270 x 44mm (17.3 x 10.63 x 1.73 in.) Rack mountable 1U height |
|
| Weight | 3.82kg (8.42 lbs.) |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 1 year | |

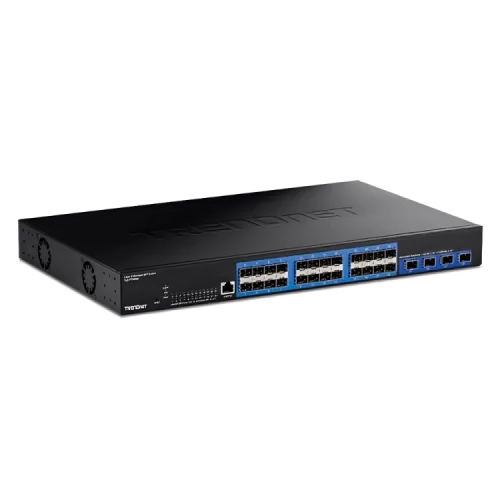

The TRENDnet TL2-F70284 is a high-performance 28-Port Layer 2 Managed SFP Switch designed for demanding networks with powerful Layer 2 features. It includes 24 Gigabit SFP ports that handle both 100Mbps and 1Gbps speeds, as well as 4 10G SFP+ ports that support 1Gbps and 10Gbps speeds, for a total switching capacity of 128Gbps and a forwarding rate of 95.2Mpps. This TRENDnet TL2-F70284 28 Port SFP Switch features both web-based and command-line management, making it useful for IT managers. It contains a wide range of capabilities, including VLAN support (802.1Q tagged, GVRP, MAC VLAN, Private VLAN, and Voice VLAN), QoS with several queue scheduling methods (SP and WRR), and strong security protocols such as 802.1X, RADIUS, TACACS+, and DHCP Snooping. The TRENDnet TL2-F70284 Layer 2 SFP Switch supports storm control, link aggregation with static and dynamic LACP, and multicasting via IGMP and MLD snooping. The TRENDnet SFP Switch can also handle IPv4/IPv6 static routing, inter-VLAN routing, and up to 32 routing entries. It contains advanced monitoring and management technologies including SNMP (v1, v2c, v3), RMON, LLDP, DDM, and port mirroring. Administrators can operate the TRENDnet TL2-F70284 28 Port Layer 2 Managed SFP Switch via the HTTP/HTTPS GUI, console, Telnet, or SSH. It provides dual firmware image storage for redundancy and easy updates, while digital diagnostics and real-time port statistics provide detailed information. Other capabilities include loopback detection, ARP table management, MAC address filtering, and DoS protection. This TRENDnet TL2-F70284 28 Port Layer 2 Managed SFP Switch, located in a 1U rack-mountable box and equipped with smart fans, functions efficiently in temperatures ranging from 0°C to 50°C and humidity levels of up to 90% non-condensing. This NDAA/TAA-compliant switch is compatible with TRENDnet's fiber and RJ-45 SFP modules and provides the scalability, speed, and reliability needed for business or data center applications.
