Pay cash discounted price and save
EMI available for 12 months on regular price: ৳24,000
| Main Feature | ||
| Antenna | 2.4GHz: 2 x 4.5 dBi internal 5GHz: 2 x 5.5 dBi internal |
|
| Button | Reset button |
|
| Temperature | 0 – 40 °C (32 – 104 °F) |
|
| Dimensions | 160 x 160 x 30mm (6.3 x 6.3 x 1.18 in.) |
|
| Weight | 380g (13.4 oz.) |
|
| Power | ||
| PoE in | IEEE 802.3at Type 2 PoE+ PD Class 4 |
|
| Network | ||
| Wireless frequency | 4804Mbps (5GHz) + 573Mbps (2.4GHz) |
|
| Wireless standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3at IEEE 802.3bz IEEE 802.1Q IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11k** IEEE 802.11n (up to 300Mbps) IEEE 802.11r IEEE 802.11v IEEE 802.11ac (up to 867Mbps) IEEE 802.11ax (up to 2402Mbps on 5GHz, up to 573Mbps on 2.4GHz) |
|
| Ethernet | 1 x 2.5GBASE-T PoE+ LAN port |
|
| Wireless Security | Supports up to WPA3 encryption |
|
| Others | Two concurrent WiFi bands maximize device networking speeds OFDMA and MU-MIMO technology boosts performance in a busy environment Access Point and Repeater modes Low-profile blends into most environments Includes wall / ceiling mounting plate Remote cloud management with TRENDnet Hive (Additional fee applies) Features MU-MIMO Band steering 802.1Q VLAN assignment per SSID IPv4 static/DHCP address assignment UPnP/Bonjour Operation Modes Access Point Repeater Management/Monitoring Web based management (HTTP/HTTPS) Command Line Interface (Telnet/SSH) SNMP v2c/v3 Spanning Tree Protocol (STP) Event logging Ping test Traceroute Schedule WiFi radio enable/disable Ping watchdog/gateway connection monitor Reboot & scheduled automatic reboot Channel utilization scan Access Control Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal) MAC filter with scheduling Maximum client limit Client isolation QoS Bandwidth control per SSID SSID Up to 8 SSIDs per wireless band (16 total) |
|
| Manufacture Warranty | ||
| Warranty | 2 years | |

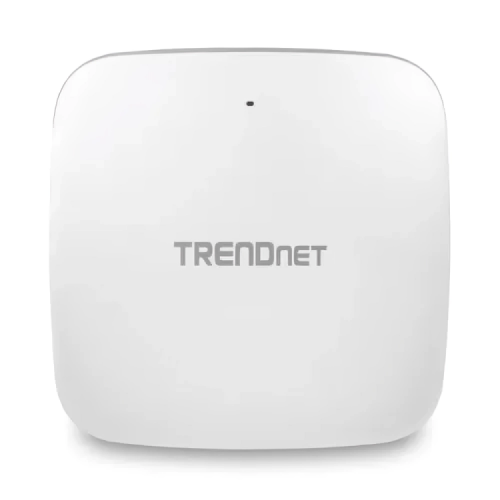

The TRENDnet TEW-925DAP AX5400 Dual Band WiFi 6 PoE+ Access Point provides up to 4804Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. With OFDMA and MU-MIMO technology, it improves wireless efficiency even when several devices are connected. The TRENDnet Access Point supports both Access Point and Repeater modes and includes a 2.5GBASE-T PoE+ LAN connection for high-speed connectivity and power delivery. It features a reset button, an LED indication, and a power socket for an optional external adaptor. Its low-profile casing allows it to blend into most contexts and comes with mounting gear for wall or ceiling installation. TRENDnet TEW-925DAP AX5400 Dual Band WiFi 6 PoE+ Access Point supports wireless technologies such as IEEE 802.11a/b/g/n/ac/ax, MIMO 2x2:2, and modulation up to 1024-QAM. Internal antennas offer 4.5 dBi gain at 2.4GHz and 5 dBi at 5GHz. Wireless output power ranges from 21 dBm on 2.4GHz to 27 dBm on 5GHz, with receiving sensitivity as low as -84 dBm depending on frequency and standard. The TRENDnet TEW-925DAP Access Point supports up to 8 SSIDs per band, 802.1Q VLAN assignment, and channel availability from FCC bands at 2.4GHz and 5GHz. Management features include a web interface (HTTP/HTTPS), CLI via Telnet or SSH, SNMP v2c/v3, STP, event logging, ping, traceroute, and scheduled WiFi control. The TRENDnet TEW-925DAP PoE Access Point includes TRENDnet Hive Cloud Management, which enables remote configuration, monitoring, batch provisioning, and hardware diagnostics. Security features include WPA2/WPA3 encryption for both personal and enterprise use, MAC filtering with scheduling, client isolation, and a client limit per access point. Other features include QoS with per-SSID bandwidth control, IPv4 static and DHCP addressing, UPnP, Bonjour, and channel use scanning. TRENDnet's TEW-925DAP AX5400 Dual Band WiFi 6 PoE+ Access Point supports IEEE 802.3at PoE+ (Class 4) and has a maximum power consumption of 17.4W.
