Pay cash discounted price and save
EMI available for 12 months on regular price: ৳59,500
| Main Feature | ||
| Type | Gigabit Web Smart Switch |
|
| Port | 48 x Gigabit ports 4 x shared Gigabit ports (RJ-45/SFP) |
|
| Network Standard | IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3az |
|
| Data Transmission Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex) Switch fabric: 104Gbps RAM buffer: 1.5MB Jumbo Frames: 10KB HOL Blocking Prevention Forwarding rate: 77.4 Mpps (64-byte packet size) |
|
| MAC Address Table | 16K entries | |
| Environment | Operating Temperature: 0° – 40° C (32° – 104° F) Operating Humidity: Max. 90% non-condensing |
|
| Hardware Features | ||
| LED | LED indicators | |
| Power Supply | Input: 100 - 240V AC, 50/60 Hz, internal power supply Consumption: 34.9 Watts (max.) |
|
| Dimensions (L x W x H) | 440 x 210 x 44mm (17.4 x 8.3 x 1.74 in.) Rack mountable 1U height |
|
| Weight | 3.48kg (7.67 lbs.) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 2 Year | |

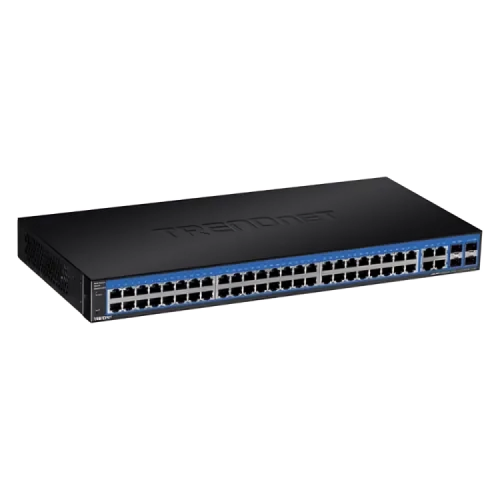

The TRENDnet TEG-524WS 52-Port Web Smart Gigabit Switch is a powerful networking solution for enterprises that require fast data transfer, security, and effective network management. With 48 Gigabit ports and four shared Gigabit ports (RJ-45/SFP), it provides smooth connectivity to large-scale networks. The switch has a total switching capacity of 104Gbps, which ensures seamless data flow while decreasing congestion. The TRENDnet TEG-524WS 52-Port Gigabit Switch provides IEEE 802.1p Quality of Service (QoS) with queue scheduling and port-specific bandwidth control, improving traffic prioritization for VoIP, video conferencing, and cloud computing. This rack-mountable switch has an attractive web-based management interface available via HTTP/HTTPS (SSL v2/3 TLS), as well as SNMP v1, v2c, v3, and RMON v1 for remote monitoring and configuration. The TRENDnet TEG-524WS 52-Port Switch supports IPv6, with capabilities like Neighbor Discovery, Static IP, DHCPv6, and auto-configuration. VLAN management capabilities include 802.1Q VLAN tagging, private and voice VLANs, and dynamic GVRP, which can support up to 256 VLAN groups with IDs ranging from 1 to 4094. The TRENDnet TEG-524WS Switch has link aggregation with 802.3ad Dynamic LACP, which improves network reliability and redundancy. The security features include 802.1X port-based network access control, RADIUS and TACACS+ authentication, DHCP snooping, loopback detection, and DoS protection. The TRENDnet TEG-524WS 52-Port Web Smart Gigabit Switch also supports ACL for IPv4, L2-L4, and IPv6, allowing administrators to restrict access based on MAC address, VLAN ID, IP protocol, and port numbers. IGMP Snooping v1, v2, and v3 support up to 256 multicast entries, as well as static multicast address management. The TRENDnet TEG-524WS 52-Port Web Smart Gigabit Switch supports efficient port mirroring, spanning tree protocols (STP, RSTP, and MSTP), and queue scheduling using Strict Priority and Weighted Round Robin.
