Pay cash discounted price and save
EMI available for 12 months on regular price: ৳26,600
| Main Feature | ||
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.3af/at |
|
| Transmission Method | Wired | |
| Data Transmission Rate | Forwarding Rates: 6.55 Mpps Switching capacity: 8.8 Gbps |
|
| MAC Address Table | 16K | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Hardware Features | ||
| Interface | 24 x 10/100 Mbps Base-TX RJ45 ports (Data/Power) 2 x 10/100/1000 Mbps Base-T RJ45 ports (Data) 1 x 1000 Mbps Base-X SFP port (Combo) |
|
| LED | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED 1 * SYS LED |
|
| Power Supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power |
|
| Dimensions (L x W x H) | 440*284*44mm |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 01-Year Warranty |
|

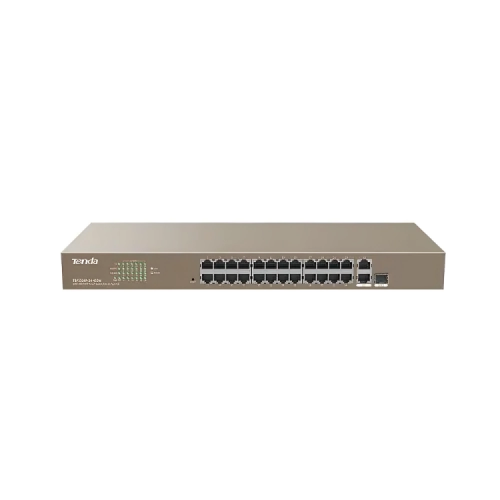

The Tenda TEF1226P-24-410W is a smart PoE switch independently designed by Tenda. Featured with 24 IEEE 802.3at/af compliant RJ45 ports, it supplies a maximum PoE power output of 370 W. The switch can supply power when transmitting data with APs, IP cameras, and IP phones through CAT5 cables. Featured smart management functions, including 250 m long-distance power supply, 802.1Q VLAN, link aggregation, QoS, and MAC address binding, it minimizes the difficulty and cost of networking deployment.
6 kV lightning protection
The Tenda TEF1226P-24-410W 24 Port PoE Smart Switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuits protection, PoE overload protection, surge current protection, etc.
Gigabit uplink port
The Tenda TEF1226P-24-410W 24 Port PoE Smart Switch With one 1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance.
370 W PoE power supply
The switch features 24 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers a maximum PoE power output of 370 W, and 30 W for a single port, to supply power to and data transmission with 24 PoE-powered devices such as APs and IP cameras.
Smart Web management
The Tenda TEF1226P-24-410W 24 Port PoE Smart Switch supports smart management functions, including 250 m long-distance power supply, 802.1Q VLAN, link aggregation, QoS, and MAC address binding, which minimizes the difficulty and cost in networking deployment.
