Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,249
| Main Feature | ||
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
|
| Transmission Method | Recommended: CAT5/5e UTP or better |
|
| Data Transmission Rate | Forwarding Rates: 6.55 Mpps Switching capacity: 8.8 Gbps |
|
| MAC Address Table | 16K | |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
| Hardware Features | ||
| Interface | 24 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-T Ethernet ports (Data) 1 * 1000 Base-X SFP port (Combo) |
|
| LED | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED |
|
| Power Supply | Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port 370W output of the total PoE Power |
|
| Dimensions (L x W x H) | 440.0mmx178.8mmx44.0mm |
|
| Manufacture Warranty | ||
| Manufacture Warranty | 01-Year Warranty |
|

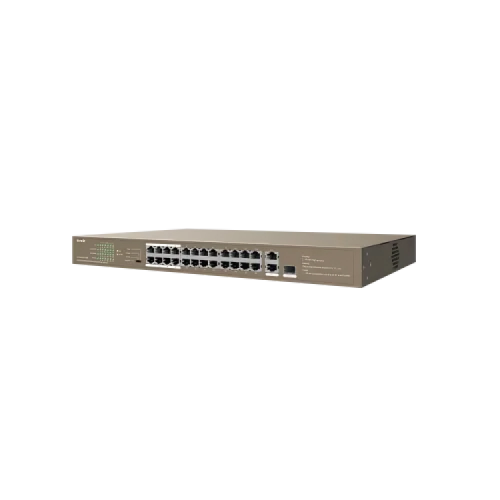

The Tenda TEF1126P-24-250W is an unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 230 W and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend, and VLAN modes, and is an ideal choice for SMBs, hotels, schools, and factories with video surveillance and wireless networking requirements.
GE and SFP Uplink Ports
The Tenda TEF1126P-24-250W Switch provides 24*FE+2*GE/1SFP. The 1-24 ports support AF/AT standard PoE power supply mode, which can intelligently identify the power receiving equipment. The Gigabit uplink port can be used for short-distance networking. With one 1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance of up to 20km.
4M Large Buffer Guarantees
The Tenda TEF1126P-24-250W Switch has a 4M buffer, which is twice larger than the similar one. The maximum output of a single port is 30W, and the whole device is 250W. When used alone, it can provide data transmission and power for 24 PoE IP cameras, APs, etc. Extraordinary quality, favored by engineering.
6KV Excellent Lightning Protection
The Tenda TEF1126P-24-250W Switch offers various safety and protection types, including 6 KV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection, etc, and these greatly protect the switch from being damaged by an inductive thunderstorm. Besides, it supports wide voltage input, AC：100-240V~50/60Hz.
230W High Power Output, Diversified Applications
It Provides 24 100M PoE ports by the IEEE802.3AF / AT standard, the maximum PoE output of the whole machine is 230W, and of a single port is 30W. Not afraid of burst traffic, avoid power failure & restart, and can provide stable power supply and data transmission for HD PoE IP cameras, APs, etc.
4 Modes For More Scenarios, One-key To Change Smart And Easy
The Tenda TEF1126P-24-250W 24 Port PoE Gigabit Switch has Standard mode, Port-based Priority mode, Port-based VLAN mode, and Extend mode making TEF1126P-24-250W able to deal with different networks, special for small & Medium-sized IP Surveillance & WI-FI coverage project.
