Description

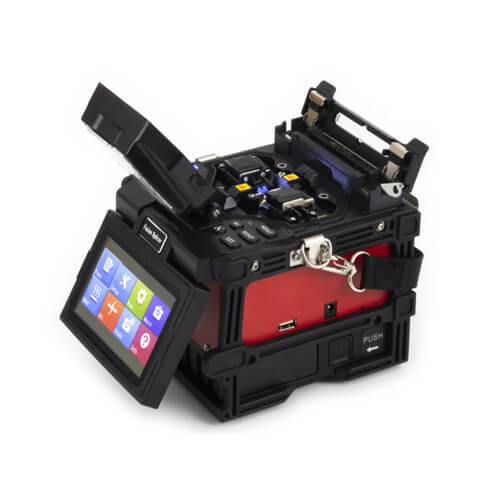

SHINHO X-97 Optical Fiber Splicing Machine:

The SHINHO X97 Splicer machine has a typical splicing time of 7 seconds. In this machine, the heating time of 60 mm and 40 mm compressed sleeve tubes is 26 seconds. It can be operated manually, and automatically, and has a 5200mAh plug-in internal Li battery. A USB 2.0 port is provided for uploading spice results and software upgrades. With more than 4000 ARC discharges, the electrode life can be conveniently replaced.

Applicable fiber SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)

Fiber count Single

Applicable fiber dimensions Cladding diameter: 80 -150μm, Coating diameter: 160 -3000μm

Typical splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)

Return loss >60db

Fiber cleaved length 10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )

Splicing program 40 groups

Operate mode Manual, Automatic

Auto-heating Available

Typical splicing time 7 seconds

Tube heating time 26 seconds for 60mm and 40mm shrinkable sleeves

Fiber view magnification 320X(X or Y view), 160X(X and Y view)

Viewing method and display 2 CMOS cameras, 4.3 inch color LCD monitor

Storage of splice result 8000 results

Loss evaluation Available

Tension test 1.8-2.2N

Interface GUI menu interface, easier operation

Battery capacity 5200mAh, typical 180 cycles(splice and tube heat), pluggable inner Li-battery

Power supply Adaptor, input: AC100-240V(50/60HZ)

Electrode life More than 4000 ARC discharges, can be replaced conveniently

Terminals USB 2.0 port, for uploading splice results and upgrading software

Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC;Wind speed: max 15m/s

Dimension 149mm(L)x120mm(W)x127mm(H)

Weight 1.9kg including battery
