Description

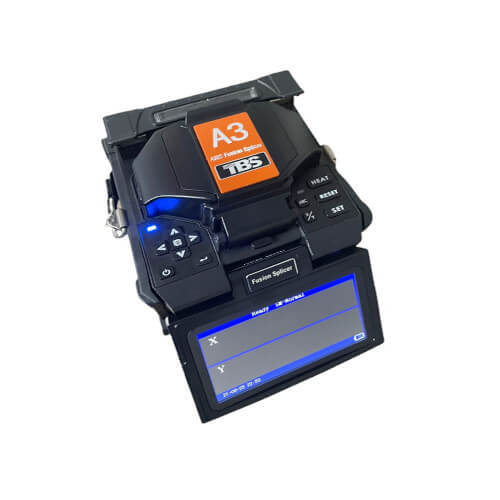

SHINHO A3 Splicer Machine:

seconds splicing time, 26s heating time.

Handheld, small, and light;1.9kg weight.

A rechargeable 5200mAh battery could support 250 cycles of splicing and heating.

Switchable SOC (Splice On Connector)

Automatic arc calibration.

Enhanced Durability with Ceramic Clamp

Rubber bumper for better protection.

Two-year Replacement warranty.

Diameter of cladding

80 -150μm

Diameter of coating

160-900μm

Typical splice loss

SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZDS: 0.04dB

Return loss

> 60dB

Fiber cleaved length

5-16mm ( coating diameter < 250um), 16mm (coating diameter:250-1000um)

Splicing program

40 groups

Operate mode

Automatic/Manual

Auto-heating

Available

Typical splicing time

7 seconds

Typical heating time

26 seconds

Fiber magnification

250X (X or Y view), 125X (X and Y view)

Display screen

4.3-inch color LCD monitor

Records Storage

4000 results

Loss evaluation

Available

Tension test

1.8-2.2N

Interface

GUI menu interface, easy to operation

Battery

5200mAh Li-battery, typical 250 cycles of splicing and heating

Power supply

Adapter, input: AC 100-240V(50/50HZ), output: 11-13.5V

Electrodes life

More than 4000 ARC discharges, can be replaced conveniently

Terminal

USB2.0 port, for software upgrading and records, exporting

Operating conditions

Altitude: 0-5000m, Humidity: 0-95%, Temperature: -10ºC~+50ºC, Wind speed: Max 15m/s

Dimension

149mm(L) * 120mm(W) * 127mm(H)

Weight

1.90kg (including battery)
