Pay cash discounted price and save
EMI available for 12 months on regular price: ৳462,000
| Display Details | ||
| Display Format Native Resolution | 4K (3840*2160) |
|
| Panel Type | LED | |
| Aspect Ratio | 16:9 | |
| Picture Response Time | 4ms | |
| Display Colors | 10 bits | |
| Brightness (typical) | 500cd/m2 | |
| Contrast Ratio | 15000:1 |
|
| Viewing Angle | 178° |
|
| Life Time | 50,000 hours |
|
| Others | Build-in Android, Anti-Glare + Anti-Fingerprint + Tempered Glass Max Power Output: 2x20 WattsStorage Temperature/Humidity: -20~60°C 0~90%RH (non-condensing) Working Temperature/Humidity: 0~40°C 20~80%RH (non-condensin |
|
| Touch System | ||
| Touch Point | 20 point touch |
|
| Others | Touch Sensor: Advanced IR Touch Screen Writing Tools: Nano Pen (>2mm width) included or Finger Positioning Accuracy: ±1mm Transmission Range: 5M Transparency: >88% Glass thickness: 4mm |
|
| Operating System | ||
| System Version | Android Version: 11 |
|
| CPU | A55*4 | |
| GPU | Mali G52MP2 |
|
| RAM | 4GB DDr4 |
|
| ROM | 32GB | |
| Connectivity | ||
| HDMI | Front: HDMI IN (2.0) ×1 Rear: HDMI IN (2.0) ×2 HDMI OUT (2.0) ×1 |
|
| LAN | RJ45 IN ×1 RJ45 OUT ×1 |
|
| USB | Front: Touch USB (USB 2.0 Type-B) ×1 USB 3.0 (Type-A Public) ×2 USB Type-C PD (65W) ×1 Rear: Touch USB (USB 2.0 Type-B) ×1 USB 2.0 (Type-A Android) ×1 USB 2.0 (Type-A Public) ×2 USB Type-C (for camera, USB 2.0) ×1 |
|
| RS232 | RS232 x 1 |
|
| Others | DisplayPort IN (1.2) ×1, Wi-Fi Module Slot ×1, Bluetooth V 5.2 VGA IN x 1 Audio 3.5mm x 1 Audio 3.5mm x 1 |
|
| Physical Specification | ||
| Active Screen Size | 86 inch |
|
| Power | Working Voltage: AC 100 - 240V 5.0A 50/60Hz |
|
| Standby Power | Standby Mode <0.5W |
|
| Others | Power Consumption: ≤500W Self-shutdown: Self-shutdown during abnormal temperature |
|
| Warranty | ||
| Warranty | 3 years (Transportation or Conveyance bill will be added for outside Dhaka customers for each service including installation or any warranty issue) | |

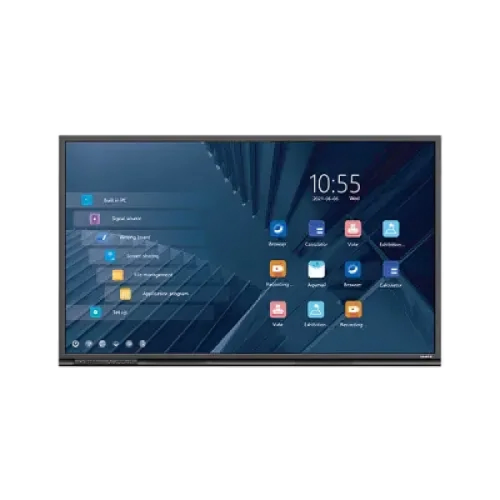

The Newline S Series TT-8622S is a premium 86-inch 4K UHD interactive flat panel display designed for education and meeting rooms. It features a large DLED screen with 3840×2160 resolution, offering sharp visuals and vibrant colors. The display supports 10-bit color depth, 500cd/m² brightness, and a 15000:1 contrast ratio, ensuring clear images in any lighting condition. With a 178° wide viewing angle, everyone in the room gets a perfect view. This Newline S Series 86-inch interactive display uses zero-bonding technology and advanced IR touch sensors for smooth and accurate touch response. It supports up to 20 touch points with ±1mm precision and 4ms response time, making writing and drawing easy with a Nano Pen or finger. The anti-glare, anti-fingerprint, and tempered glass surface adds durability and comfort. Powered by Android 11, the Newline S Series 86-inch Interactive Board includes 4GB DDR4 RAM and 64GB total memory. It comes with built-in apps like Whiteboard, Chromium, Eshare Pro, and Aqua Mail. Users can cast wirelessly from up to 9 devices, use split-screen and picture-in-picture modes, and access tools like vote, message, and screen recorder. Connectivity is seamless with Wi-Fi 6, Bluetooth 5.2, and multiple ports including HDMI 2.0, USB Type-C PD 65W, DisplayPort, OPS slot, and RJ45 LAN. The display also supports OTA firmware updates, smart eye protection, and a blue light filter to reduce eye strain. The Newline S Series 86-inch 4K Interactive Flat Panel includes dual 20W speakers for clear audio and supports self-shutdown during abnormal temperatures for safety. It comes with essential accessories like a remote controller, an HDMI cable, a wall mount, and a stylus. Ideal for smart classrooms, corporate boardrooms, and collaborative spaces, the Newline TT-8622S interactive panel combines high performance, user comfort, and advanced features to deliver a powerful and engaging experience.
