Pay cash discounted price and save
EMI available for 12 months on regular price: ৳38,500
| Primary Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
|
| Chipset | INTEL Z890 |
|
| Form Factor | ATX (243.84mmx304.8mm) |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4x UDIMM |
|
| Supported Memory | Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| Display Port (s) | 1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz* |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN |
|
| Supported Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices | |
| Audio | 1x Front Audio (JAUD) |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| Others Features | ||
| Special Features | 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty |
|

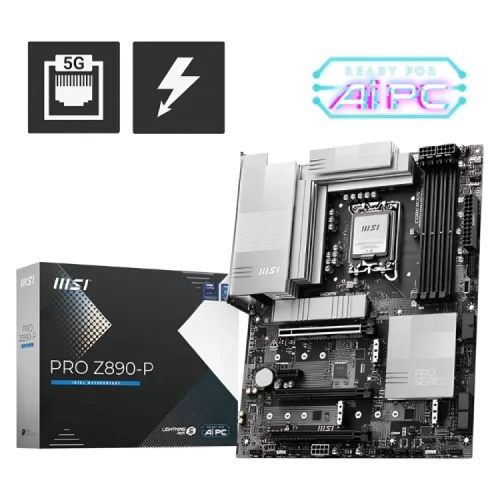

The MSI PRO Z890-P LGA 1851 ATX motherboard supports Intel Core Ultra Processors (Series 2) with an LGA 1851 socket. The MSI Z890 motherboard supports DDR5 memory at rates of up to 9200+ MT/s (OC) and a maximum capacity of 256GB, providing great performance and multitasking capabilities. MSI PRO Z890-P LGA1851 motherboard features a powerful 14+1+1+1 Duet Rail Power System with 55A DrMOS, dual 8-pin CPU power connectors, and a 6-layer PCB composed of 2oz thicker copper, ensuring consistent power delivery and greater dependability for demanding workloads. The enlarged heatsink, MOSFET thermal pads rated for 7W/mK, and EZ M.2 Shield Frozr II offer improved thermal performance. The MSI PRO Z890-P LGA 1851 ATX motherboard offers cutting-edge connectivity for professionals and gamers, with PCIe 5.0 slots, support for Lightning Gen 5 x4 M.2, and a Thunderbolt 4 connector with up to 40Gbps transfer speeds and compatibility for 8K displays. For professional and multimedia applications, the 5Gbps LAN and Intel Wi-Fi 7 provide fast and reliable networking, and Bluetooth 5.4 guarantees smooth wireless integration. With four M.2 slots (with PCIe 5.0 compatibility) and four SATA 6G connections, the MSI Intel Ultra Series Motherboard offers a wide range of storage options. RAID support is available for both SATA and NVMe devices. Additionally, the MSI PRO Z890-P LGA 1851 ATX motherboard supports 4K and 8K resolutions with HDMI 2.1, DisplayPort 1.4, and a Type-C DisplayPort. USB connectivity offers a variety of fast alternatives, such as USB 10Gbps Type-A and USB 20Gbps Type-C ports. With features like RGB and addressable LED connectors, TPM 2.0 support, Audio Boost for high-definition sound, and extensive fan headers, the MSI LGA1851 Motherboard is also a flexible option for professional setups, gaming, and video production. For sophisticated users, the MSI PRO Z890-P is a dependable and feature-rich motherboard that is compatible with Windows 11 64-bit.
