Pay cash discounted price and save
EMI available for 12 months on regular price: ৳11,940
| Primary Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset |
|
| Form Factor | mATX 211mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
|
| M.2 Socket | 1x M.2 |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 2x DDR5 memory slots |
|
| Supported Memory | Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | Support up to 96GB |
|
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| Display Port (s) | 1x DisplayPort |
|
| USB (s) | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| VGA (s) | 1x VGA port |
|
| LAN Port (s) | Intel I219V 1Gbps LAN controller |
|
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | LED FEATURE: 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

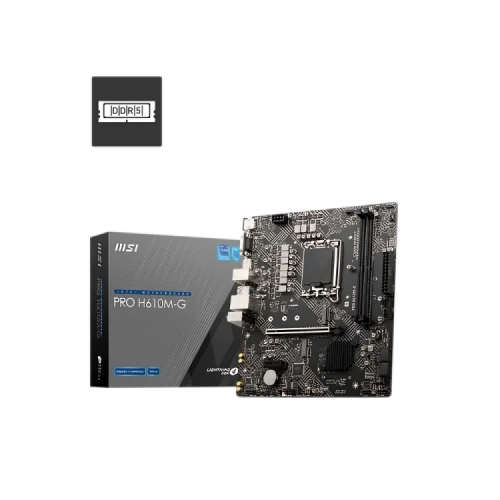

The MSI PRO H610M-G DDR5 mATX Motherboard is a high-quality motherboard designed to meet the needs of gamers, content creators, and PC enthusiasts. This motherboard supports a wide range of Intel processors, including the 14th, 13th, and 12th Generation Intel Core processors, as well as Intel Pentium Gold and Celeron processors. It is compatible with the LGA 1700 socket, ensuring that you can build a system with the latest and most powerful CPUs available. This motherboard is its support for DDR5 memory, allowing for blazing-fast data transfer speeds and a maximum memory frequency of up to 5600 MHz. This means that your system will be able to handle memory-intensive tasks with ease, providing a significant boost in performance. The Core Boost technology incorporated into the motherboard ensures that your CPU can harness its full potential. With a premium layout and digital power design, this feature supports more CPU cores, resulting in better overall performance and responsiveness. Memory Boost technology is another crucial element, ensuring that data signals are delivered efficiently, which in turn contributes to superior performance, stability, and compatibility. For those who demand lightning-fast data transfer speeds, the MSI PRO H610M-G DDR5 mATX Motherboard offers support for PCIe 4.0, which allows for faster and more efficient communication between your CPU and GPU, as well as other high-speed components like NVMe SSDs. Audio enthusiasts will appreciate the Audio Boost feature, which delivers studio-grade sound quality. Whether you're gaming, streaming, or editing audio or video, you can expect crystal-clear and immersive sound. To ensure that your graphics card remains in top shape and performs at its best, the Steel Armor feature protects the VGA cards against bending and electromagnetic interference (EMI). This extra layer of protection enhances the overall performance, stability, and strength of your system.
