| Primary Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset |
|
| Form Factor | mATX 200mmx236.16mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 | |
| Supported Memory | Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 96GB |
|
| Graphics | ||
| Graphics | Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 with HDR port |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| VGA (s) | 1x VGA |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
|
| Supported Storage | Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
| Audio | 1x Front panel audio connector |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | 1x 4-pin RGB LED connector 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

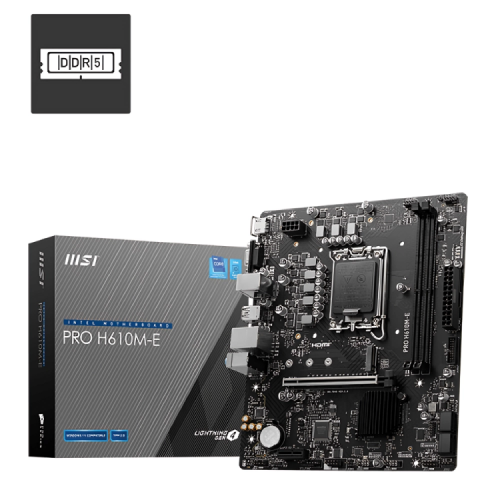

The MSI PRO H610M-E mATX Motherboard is a solid and adaptable foundation for Intel-based systems. This motherboard is compatible with Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron CPUs on the LGA 1700 socket. It incorporates the most recent memory technology, supporting DDR5 Memory with a maximum frequency of up to 5600MHz, allowing for quicker and more efficient data handling. Core Boost technology improves performance by offering strong support for many cores, thanks to its superior layout and digital power architecture. Memory Boost technology assures the delivery of clean data signals, which contributes to excellent performance, stability, and compatibility. Users may enjoy lightning-fast data transfer speeds with PCIe 4.0 compatibility, providing high-speed connection for current peripherals and storage devices. The motherboard has Audio Boost technology, which delivers studio-grade sound quality for immersive gaming and multimedia. Steel Armor protects VGA cards from bending and electromagnetic interference (EMI), improving overall performance, stability, and strength. In conclusion, the MSI PRO H610M-E mATX Motherboard combines cutting-edge technology, a sturdy design, and premium features to provide a dependable and high-performance foundation for a wide range of computing operations, appealing to gamers, content creators, and power users alike.
