| Primary Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD A620 |
|
| Form Factor | mATX 211mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 |
|
| Supported Memory | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|

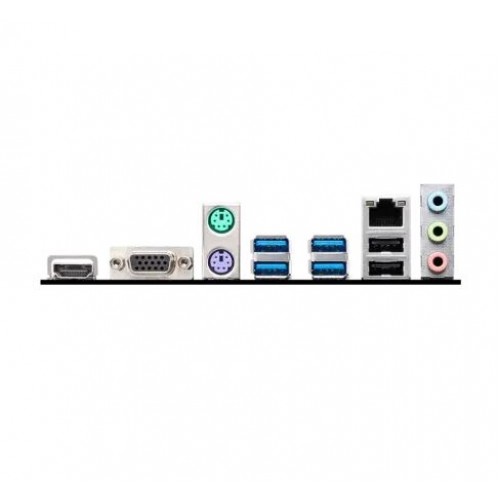

| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 1x VGA |
|
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN |
|
| Supported Storage | 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | 4x EZ Debug LED |
|

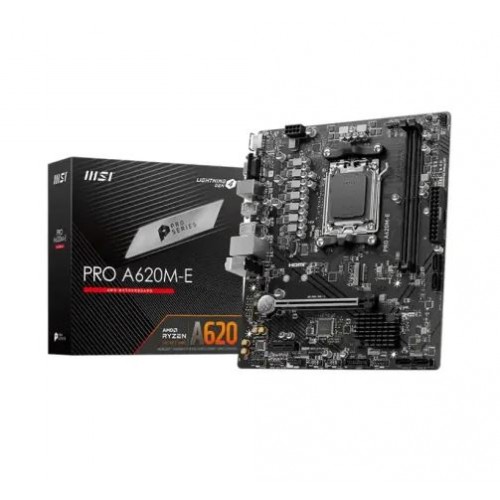

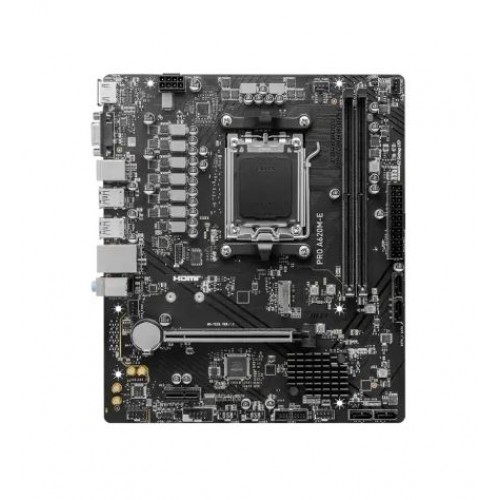

The MSI PRO A620M-E AMD AM5 mATX motherboard is compatible with the latest AMD Ryzen 7000 Series desktop processors. With support for DDR5 Memory and Dual Channel DDR5 6000+MHz (OC), the motherboard offers lightning-fast memory speeds and enhanced performance. The Core Boost technology, combined with premium layout and digital power design, ensures optimal power delivery to support more cores and provide better overall performance. The Memory Boost feature delivers pure data signals using cutting-edge technology to ensure the best performance, stability, and compatibility. The Lightning Gen 4 x4 M.2 support and PCIe 4.0 slot, which enable quicker data transfer and shorter loading times, will delight gamers with a lightning-fast gaming experience. The MSI PRO A620M-E Motherboard has Audio Boost, which provides studio-quality sound for a realistic gaming experience. The MSI PRO A620M-E provides better performance, stability, and strength thanks to Steel Armor, which shields VGA cards from bending and EMI interference. This makes it a great option for putting together a powerful gaming setup.
