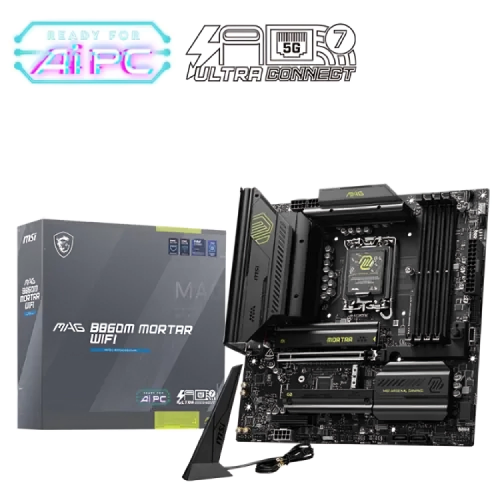

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard

Price:35,200
Regular Price: 35,260
Brand: MSI
Status: Out Of Stock
SKU: 891808
Out Of Stock

Main Features

  • Model: MAG B860M MORTAR WIFI
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 4x DDR5, Dual Channel 9200+ MT/s (OC), Max 256GB
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
  • Features: 3x M.2 Slot, 1x 5Gbps LAN, Intel Killer Wi-Fi 7, Bluetooth 5.4
Show More

Payment Methods

৳35,200

Pay cash discounted price and save

Out of Stock
  • Specification
  • Description
  • Reviews
  • FAQ

Product Specification

Primary Information
Supported CPUSupports Intel Core Ultra Processors (Series 2)
LGA 1851
ChipsetINTEL B860
Form FactormATX
243.84mmx243.84mm
AudioRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Memory
TypeDDR5
Slots4x UDIMM
Supported MemoryMemory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
Maximum Memory256GB
Graphics
Graphics1x HDMI
Support HDMI 2.1 with FRL, maximum resolution of 8K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
1x Type-C DisplayPort
Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
Connector & Ports
HDMI1x HDMI 2.1 with FRL
Display Port (s)1x DisplayPort 1.4
1x Type-C DisplayPort
Thunderbolt 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz
USB (s)4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
LAN Port (s)Intel Killer E5000 5Gbps LAN
Wireless Communication moduleIntel Killer BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio1x Front Audio (JAUD)
Internal I/O Ports1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Others Features
Special Features4x EZ Debug LED
1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty3 Years

Description

MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard Best Price in Bangladesh

The MSI MAG B860M MORTAR WIFI LGA 1851 mATX motherboard is a reliable mATX choice. It offers a state-of-the-art platform for professionals, producers, and gamers and is made for Intel Core Ultra Processors (Series 2) with an LGA 1851 socket. This MSI Intel Core Ultra Series motherboard offers outstanding performance and multitasking capabilities. It supports DDR5 memory with speeds up to 9200+ MT/s (overclocked) and a maximum capacity of 256GB. Reliability and efficiency are guaranteed by its sturdy 12+1+1+1 Duet Rail Power System with 60A DrMOS, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. Server-grade components and a 6-layer PCB with 2 ounces of thicker copper improve stability and longevity in this MSI MAG B860M MORTAR WIFI mATX DDR5 motherboard. High-quality MOSFET thermal pads, an expanded heatsink, and the EZ M.2 Shield Frozr II for optimal cooling are all included in the Frozr Guard for improved thermal management. With its PCIe 5.0 x16 slot and support for Lightning Gen 5 x4 M.2, this MSI MAG B860M MORTAR WIFI LGA1851 mATX motherboard offers lightning-fast gaming and storage performance. With an Intel Killer 5G LAN, a Thunderbolt 4 port that supports data transfer rates up to 40Gbps, and Wi-Fi 7 for dependable and quick networking, this MSi LGA1851 motherboard provides extensive connectivity. Several USB 10Gbps and 5Gbps ports, as well as USB 40Gbps Type-C, are available for seamless connectivity with contemporary devices. With onboard graphics options like HDMI 2.1, DisplayPort 1.4, and Thunderbolt-enabled Type-C DisplayPort, this MSI MAG B860M MORTAR WIFI LGA 1851 mATX motherboard supports up to 8K at 60Hz or 4K at 120Hz for rich visuals. It delivers plenty of storage and high-end sound quality thanks to its three M.2 slots, four SATA 6G connections, support for RAID 0, 1, 5, and 10, and Realtek ALC897 7.1-channel audio. Advanced wireless communication is offered by the Intel Killer Wi-Fi 7 and Bluetooth 5.4, and its small mATX form factor guarantees adaptability. The MSI MAG B860M MORTAR WIFI motherboard is designed for outstanding performance and efficiency, and it is compatible with Windows 11.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

What is the best price of MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard in Bangladesh?

The best price of MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard in Bangladesh is 35,200. You can buy the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard at best price from our website.

FAQs

The MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard is currently out of stock at Computer Vision BD. Please call +880 1937-969691 for availability.
No — the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard is currently out of stock. Please call +880 1937-969691 for availability.
You can buy the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard online right here at Computer Vision BD with cash on delivery, or from our Dhaka, Rangpur and Gaibandha branches.
The MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard comes with a 3 Years warranty.
Delivery charge is ৳80 inside Dhaka and ৳120 outside Dhaka. Delivery usually takes 1–2 business days within Rangpur and 3–7 business days elsewhere in Bangladesh.
Yes — Cash on Delivery is available. Credit-card EMI is available on online orders of ৳5,000 or more.

What is the MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard Price in Bangladesh 2026?

The MSI MAG B860M MORTAR WIFI LGA 1851 mATX Motherboard is listed at Computer Vision BD for ৳35,200, with a 3 Years warranty and is currently out of stock, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
