| Primary Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 |
|
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 DIMMs |
|
| Supported Memory | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 1x DisplayPort |
|
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
|
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | Audio Connectors |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

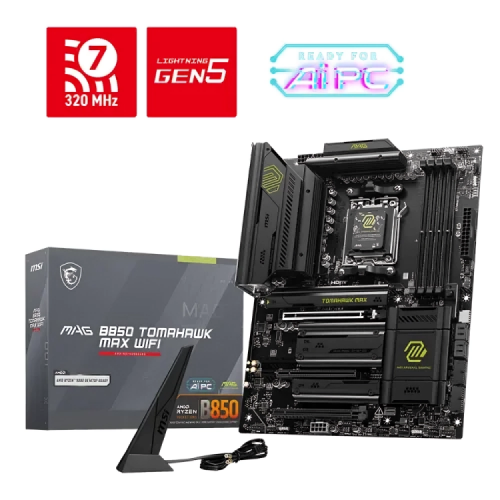

Introducing the MSI MAG B850 TOMAHAWK MAX WIFI AM5 ATX Motherboard, a one-of-a-kind MSI motherboard designed for discerning gamers and professionals looking for unsurpassed performance, dependable connection, and endless customization options in their next-generation AMD rigs. This premium MSI AMD motherboard is built on the cutting-edge AMD B850 chipset for the AM5 platform. This B850 Motherboard supports AMD Ryzen 7000 and Ryzen 9000 series processors and features overclocked DDR5 memory with speeds of up to 8400+ MT/s across four DIMM slots. This ensures seamless multitasking and exceptional performance under any workload. This MSI AMD motherboard provides versatile storage options with several M.2 slots, including a flagship PCIe 5.0 x4 slot built for lightning-fast NVMe SSDs, as well as additional PCIe 4.0 storage interfaces and SATA 6Gb/s connectors to meet any storage requirement. This MSI WiFi motherboard features cutting-edge Wi-Fi 7 technology and a high-speed 5G LAN connection, providing reliable network performance for competitive gaming and professional applications. With a dependable 14+2+1 Duet Rail Power System that includes MSI's unique Core Boost technology and innovative cooling mechanisms such as the exclusive EZ M.2 Shield Frozr II, the board efficiently manages high thermal loads while remaining stable over extended sessions. fit all types of storage needs.
