| Primary Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 3x M.2 slots |
|
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 x DIMM |
|
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 192GB |
|
| Graphics | ||
| Graphics | Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| Display Port (s) | 1x DisplayPort 1.4 |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN |
|
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | LED FEATURE: 4x EZ Debug LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

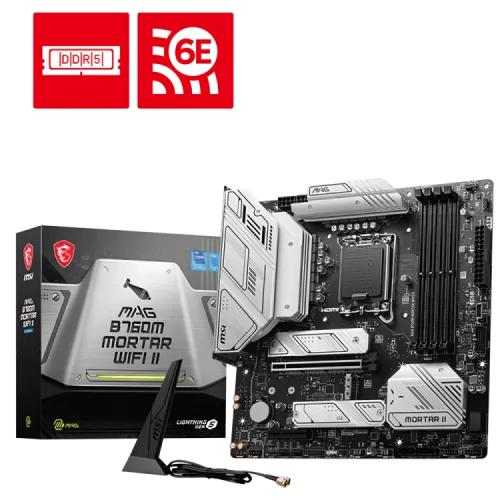

The MSI MAG B760M MORTAR WIFI II Motherboard is a top-tier solution for gaming and content production aficionados, supporting Intel Core 14th, 13th, and 12th Gen Processors, as well as Intel Pentium Gold and Celeron Processors built for the LGA 1700 socket. With DDR5 compatibility, this motherboard embraces memory technology's future, allowing for remarkable memory rates of up to 7800+(OC) MHz, assuring a fluid multitasking experience and improved system responsiveness. The improved 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost all work together to create a stable and overclocking-friendly environment. The motherboard also has a PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2 x2 for customers who want high data transfer speeds and compatibility with the newest gaming accessories. The premium thermal solution with the expanded heatsink design and M.2 Shield Frozr offers top performance and dependability when it comes to maintaining appropriate temperatures during strenuous gaming sessions or resource-intensive work. The addition of Audio Boost technology improves the user experience even further by offering studio-grade sound quality for gaming, music, and multimedia applications. The motherboard's high-quality construction is obvious in its 6-layer PCB, which is manufactured from 2oz thicker copper and server-grade level material. This improves not only the system's resilience and stability but also its overall lifetime. In conclusion, the MSI MAG B760M MORTAR WIFI II Motherboard smoothly integrates cutting-edge technology with an emphasis on performance, dependability, and user-friendly features, making it an excellent choice for individuals looking for a high-performance motherboard for their gaming or video production system.
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.
The MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard is available at Computer Vision BD for ৳25,500 (regular price ৳27,600), with a 3 Years warranty and is in stock at our Dhaka, Rangpur and Gaibandha branches. Follow us on Facebook and YouTube for updates, offers and product reviews.
