Pay cash discounted price and save
EMI available for 12 months on regular price: ৳28,399
| Primary Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Chipset | INTEL B760 |
|
| BIOS | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | ||
| M.2 Socket | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 |
|
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | ||
| Max Shared Memory | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 1x DisplayPort |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN |
|
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | HD Audio Connectors |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| D-Sub (s) | ||
| DVI-D (s) | ||
| Others Features | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

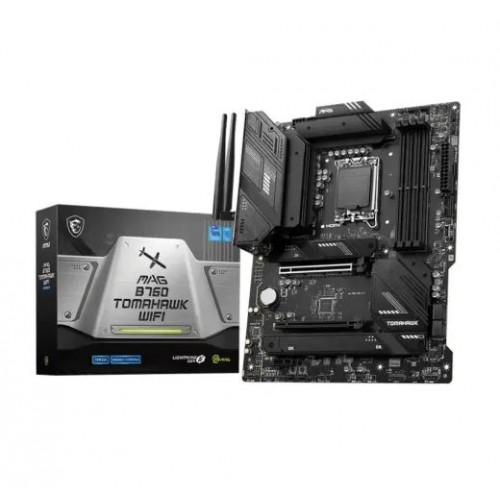

MSI MAG B760 TOMAHAWK WIFI Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The Six SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).
Get specific details about this product from customers who own it.
| Primary Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
|
| Chipset | INTEL B760 |
|
| BIOS | ||
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
|
| Expansion Slots | ||
| PCI | ||
| M.2 Socket | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 |
|
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 128GB |
|
| Graphics | ||
| Graphics | ||
| Max Shared Memory | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port (s) | 1x DisplayPort |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN |
|
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | HD Audio Connectors |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| D-Sub (s) | ||
| DVI-D (s) | ||
| Others Features | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |
MSI MAG B760 TOMAHAWK WIFI Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The Six SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).
