| Primary Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs |
|
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
|
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Audio | HD Audio Connectors |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years |
|

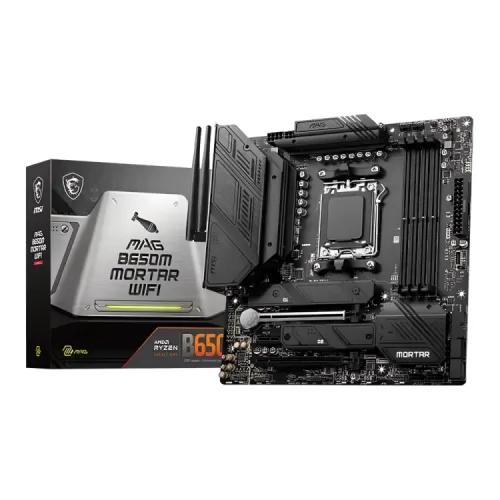

The MSI MAG B650M MORTAR WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650M MORTAR WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MAG B650M MORTAR WIFI Motherboard comes with 3 years of warranty.
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.
The MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard is available at Computer Vision BD for ৳28,600 (regular price ৳31,500), with a 3 Years warranty and is in stock at our Dhaka, Rangpur and Gaibandha branches. Follow us on Facebook and YouTube for updates, offers and product reviews.
