| Primary Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket |
|
| Chipset | INTEL B860 |
|
| Form Factor | mATX Form Factor 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM |
|
| Supported Memory | Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM |
|
| Maximum Memory | Maximum Memory Capacity 256GB |
|
| Graphics | ||
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| Display Port (s) | 1x DisplayPort 1.4a |
|
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Intel Killer E5000 5Gbps LAN |
|
| Wireless Communication module | Intel Killer BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | 1x Front Audio (JAUD) |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty |
|

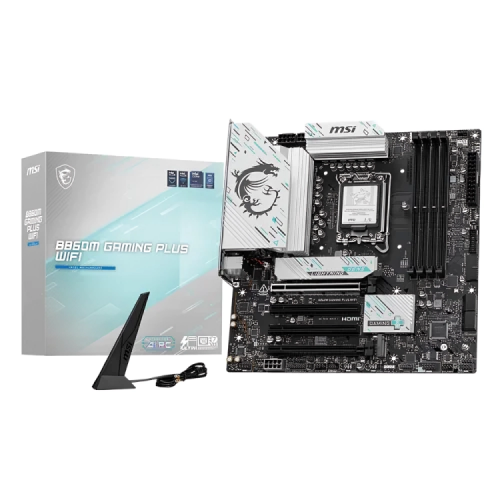

Introducing the MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard, an exclusive MSI motherboard designed for discerning gamers and professionals that require unsurpassed performance, reliable connection, and comprehensive customization options all in a compact chassis. As a premium MSI Intel Motherboard, it is built on the Intel B860 chipset and supports Intel Core Ultra Processors via the LGA 1851 socket, providing users with top-tier processing power and DDR5 memory speeds of up to 8600+ MT/s across four UDIMM slots for seamless multitasking and dynamic overclocking. This MSI 860 motherboard provides versatile storage options with multiple M.2 slots, including a flagship PCIe 5.0 x4 slot for cutting-edge NVMe SSDs, as well as additional PCIe 4.0 slots and SATA 6Gb/s connectors, making it adaptable to a wide range of storage requirements while also fitting perfectly into space-constrained builds. This flagship grade MSI WiFi Motherboard boasts next-generation Intel Wi-Fi 7 technology and a high-speed Realtek LAN connection (up to 5Gbps), ensuring reliable and fast networking for home and professional installations. With a strong 12+1+1+1 phase VRM that includes MSI's patented Core Boost technology and superior cooling solutions like the exclusive EZ M.2 Shield Frozr II, this board keeps operating temperatures stable even during the most intense gaming sessions and workloads.The MSI B860M GAMING PLUS WIFI LGA 1851 Micro ATX Motherboard is a future-proof solution that redefines modern computing by delivering a harmonious blend of power, efficiency, and next-generation connectivity in a streamlined, space-saving form factor. This MSI motherboards multimedia performance is further enhanced by a dedicated Thunderbolt 4 port via USB Type-C, as well as multiple display outputs such as HDMI 2.1 and DisplayPort 1.4.Demanding game sessions and workloads.
