| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
|
| Chipset | AMD B850 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| Display Port (s) | 1x DisplayPort 1.2 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) |
|
| LAN Port (s) | 1x Realtek 8126VB 5G LAN | |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/8300 Series processors) |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices RAID 5 configuration is only supported by Ryzen 9000 Series Processors |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others Features | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

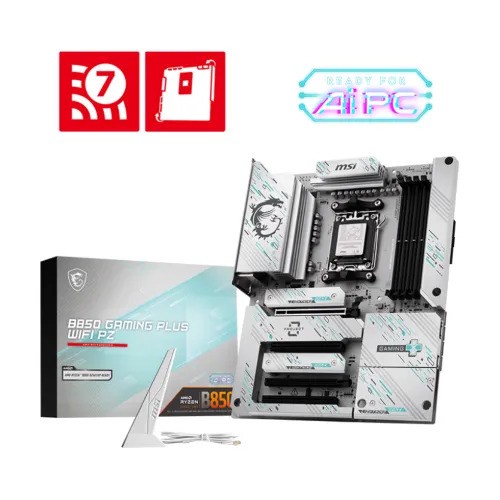

The MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard is a powerful and comprehensive option for gamers, creators, and power users that require cutting-edge technology and next-generation performance. The MSI B850 GAMING PLUS WIFI PZ Motherboard is based on the AMD Socket AM5 platform and supports the newest AMD Ryzen 9000, 8000, and 7000 Series desktop CPUs, providing exceptional processing capability for gaming, multitasking, and content production. The MSI B850 GAMING PLUS WIFI PZ AM5 Motherboard features 4 DDR5 UDIMM slots that can accommodate up to 256GB of RAM and speeds of up to 8200 MT/s (OC), ensuring ultra-fast responsiveness and exceptional memory performance. Powered by the AMD B850 chipset, it offers seamless system stability, advanced overclocking support, and compatibility with AMD EXPO technology for easy memory optimization. For expansion, this motherboard features 4 PCIe x16 slots, including one PCIe 5.0 x16 slot designed for high-end graphics cards, ensuring future-ready gaming and creative performance. Storage options are abundant with 3x M.2 slots (up to PCIe 5.0 x4) and 4x SATA 6G ports, supporting RAID 0, 1, and 10 for SATA and RAID 0, 1, and 5 for NVMe SSDs, ensuring ultra-fast data transfer and reliability. The MSI B850 GAMING PLUS WIFI PZ also features next-generation connectivity with Realtek 8126VB 5G LAN, Wi-Fi 7, and Bluetooth 5.4, offering high-speed networking and seamless wireless performance up to 5.8Gbps. It includes multiple USB options, such as USB 10Gbps Type-A and Type-C, USB 5Gbps, and USB 2.0 ports, delivering versatile connectivity for modern devices. Visuals are powered by a DisplayPort 1.2 output supporting 4K 60Hz resolution, while the Realtek ALC897 7.1-channel high-definition audio codec provides immersive and crystal-clear sound for gaming and entertainment. Additional premium features such as a Flash BIOS Button, EZ Debug LED, multiple RGB headers (JARGB_V2 & JRGB), and a wide range of internal I/O ports make the MSI B850 GAMING PLUS WIFI PZ AM5 ATX Motherboard easy to build, customize, and upgrade. With its robust design, high-end connectivity, and cutting-edge performance, the MSI B850 GAMING PLUS WIFI PZ Motherboard is the perfect choice for building a future-proof gaming or workstation PC.
