Pay cash discounted price and save
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B840 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
|
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMI™ 2.1, maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8125D 2.5G LAN | |
| Wireless Communication module | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others Features | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

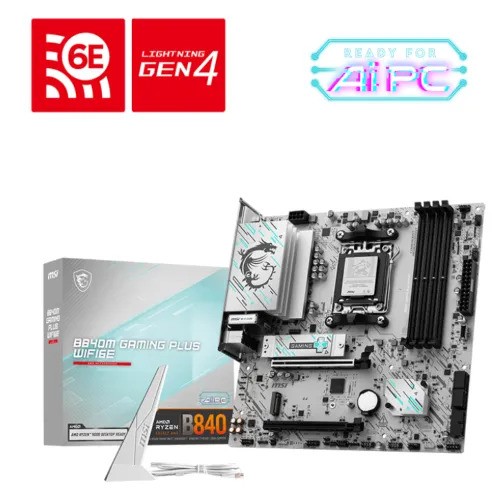

The MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard is a powerhouse designed for gamers and PC enthusiasts who demand reliability, speed, and performance. Supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors, this MSI B840M GAMING PLUS WIFI6E AM5 Motherboard delivers exceptional processing efficiency with its 7+2+1 phase direct CPU power design and 8-pin CPU power connector. Engineered with Core Boost, Memory Boost, and a 6-layer PCB with 2oz thickened copper, it ensures maximum stability and durability even under heavy workloads. The MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard supports DDR5 dual-channel memory up to 8000+ MT/s (OC), enabling faster data transfer and smoother multitasking for modern applications and gaming. Its Frozr Guard thermal design includes extended heatsinks, MOSFET thermal pads rated for 7W/mK, and an M.2 Shield Frozr II to maintain optimal temperatures during long gaming sessions. For connectivity, this MSI WiFi Motherboard features Lightning Gen 4 x4 M.2 slots, PCIe 4.0 expansion, and front USB Type-C support for ultra-fast data transmission. It comes equipped with Realtek 8125D 2.5G LAN and integrated Wi-Fi 6E, providing blazing-fast and stable networking performance. Additionally, Bluetooth 5.3 ensures seamless device pairing and low-latency communication. The MSI B840M GAMING PLUS WIFI6E Motherboard enhances gaming immersion with Audio Boost, delivering studio-grade 7.1-channel sound quality. Its EZ DIY features, including EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna, make installation simple and user-friendly. Designed in the mATX form factor, this MSI AMD Motherboard includes dual PCI-E x16 slots, dual M.2 slots, four SATA 6G ports, and various USB 10Gbps and 5Gbps connections. With support for Windows 11 64-bit, TPM 2.0, and multiple RGB headers, the MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard combines cutting-edge technology, superior design, and next-gen connectivity, making it an ideal choice for gamers and creators seeking an efficient and future-ready build.
Get specific details about this product from customers who own it.
The prices and specifications on this page are collected from the respective brands and are updated regularly, but may change without prior notice; the price shown at checkout is final.
Product images are for illustration only and the actual product may differ slightly in colour or packaging.
All orders are confirmed by our team after checking stock availability.
Warranty service follows the warranty period stated for this product and the brand's policy; please keep your invoice for any warranty claim.
If you find any incorrect information on this page, please let us know through the Suggestion button — we will correct it promptly.
The MSI B840M GAMING PLUS WIFI6E AM5 mATX Motherboard is expected soon at Computer Vision BD, and its price is yet to be announced, so please call 01937-969691 for availability. Follow us on Facebook and YouTube for updates, offers and product reviews.
