| Main Feature | ||
| Type | Unmanaged Switch |
|
| Port | Uplink ports: 2 x GE SFP ports Downlink ports: 24 x 10/100/1000BASE-T ports (124 W PoE+) |
|
| MAC Address Table | 8K | |
| Hardware Features | ||
| LED | Port indicator PWR indicator |
|
| Power Supply | Without PoE: 24 W Full PoE load: 165 W (PoE: 124 W) |
|
| Dimensions (L x W x H) | 90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.) |
|
| Weight | 3.2 kg (7.05 lb) | |
| Manufacture Warranty | ||
| Manufacture Warranty | 3 Years | |

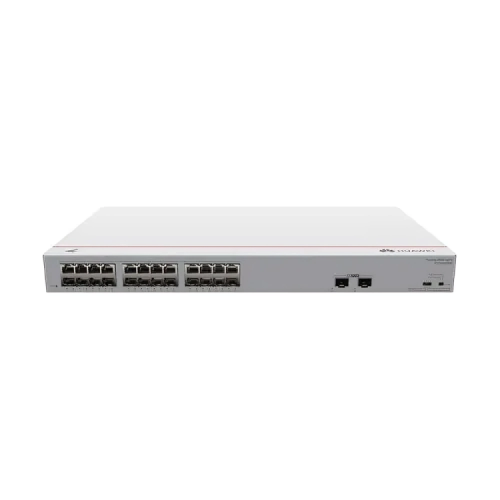

The Huawei eKitEngine S110-24LP2SR is a powerful 24-port Gigabit PoE+ unmanaged switch that has two GE SFP uplink ports for flexible network integration and high-speed data transfer, in addition to 24 10/100/1000BASE-T downlink ports with a total PoE+ power budget of 124 W. Standard mode, port isolation, uplink aggregation, and flow control disabling are among the several operating modes of this switch that help to enhance network security and performance. Effective data management throughout the network is ensured by its support for an 8K MAC address table size. At elevations of up to 1800 meters (5906 feet), the Huawei eKitEngine S110-24LP2SR 24 Port Gigabit PoE+ Unmanaged Switch functions dependably in a temperature range of 0°C to 40°C (32°F to 104°F). at every 220-meter (722-foot) rise in altitude, the maximum operating temperature drops by 1°C at altitudes between 1800 and 5000 meters (5906 and 16404 feet). It can withstand storage temperatures ranging from -40°C to +70°C (–40°F to +158°F), and it performs best in non-condensing relative humidity levels of 5% to 95%. At elevations of up to 5000 meters (16404 feet), the Huawei eKitEngine S110-24LP2SR 24 Port Gigabit PoE+ Unmanaged Switch is appropriate for high-altitude installations. Under a full PoE load, the device's maximum power consumption is 160 W, and its average heat dissipation rate is 81.89 BTU/hour. It uses natural heat dissipation, which ensures noiseless operation with pressure and acoustic power levels under 20 dB and 30 dB, respectively. With a maximum input current of 3 A, the integrated AC power supply can handle a broad input voltage range of 90 V to 300 V AC and a frequency range of 47 Hz to 63 Hz. The Huawei eKitEngine S110-24LP2SR 24 Port Gigabit PoE+ Unmanaged Switch also meets IP20 ingress protection criteria, is certified for EMC, safety, and manufacturing standards, and provides strong surge protection for both service ports and power supply.
